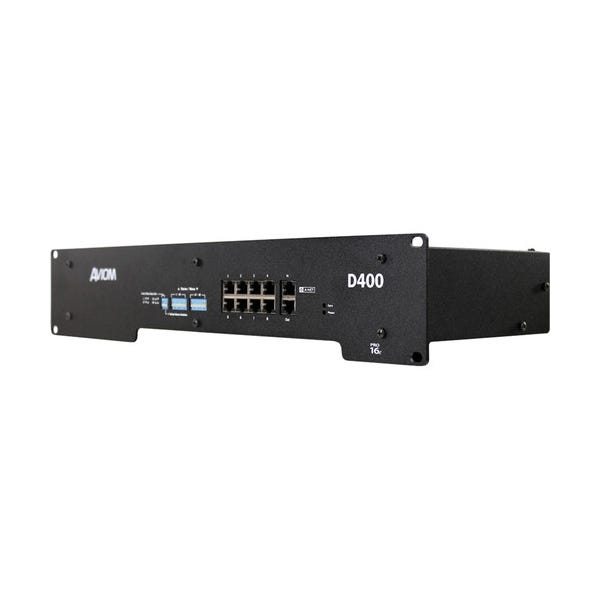

Aviom D400 Distributor for Monitor Mixers and A-Net Audio Networks

The D400 and D400-Dante A-Net Distributors provide the link between the personal mixing system's inputs and the Personal Mixers, providing power and a copy of the digital audio stream to your Aviom Personal Mixers, utilizing standard Cat-5e cables.

There are two versions of the D400 product. The standard D400 has an Aviom A-Net input, perfect for using with Aviom's analog input modules or digital console cards from Aviom or our third party partners. The D400-Dante has a Dante input instead, and allows up to 32 channels (at 44.1/48kHz) to be routed from a Dante-enabled console or digital audio network to the Personal Mixers.

The D400 and D400-Dante can be used with A-16II, A320, and A360 Personal Mixers in any combination.

Connecting to Analog or Digital Consoles
For personal mixing systems that use one or more analog input modules (AN-16/i v.2, AN-16/i-M, or legacy AN-16/i) or an A-Net console card (such as the Y1 A-Net Card for Yamaha digital consoles), use the standard D400 with the Aviom A-Net input.

With one Pro16 A-Net In and eight powered A-Net Outs, you can provide power and audio for up to eight Aviom Personal Mixers. And the D400 includes an unpowered A-Net Out as well, perfect for connecting additional A-Net Distributors for systems with more than eight Personal Mixers. Learn more about expanding...

Grow your system
If you need more than eight Personal Mixers, both the D400 and the D400-Dante include an A-Net Out port—perfect for sending the incoming audio stream (regardless of its original source) to additional A-Net Distributors. There is no practical limit to the number of A-Net Distributors and Personal Mixers that you can use in a system. Learn more about expanding your system.

Need Even More Power & Flexibility?
If you're looking for more advanced features like Network Mix Back for use with wireless in-ear systems, iOS support for the A360 Display app, higher smaple rates up to 192kHz, or you need a high channel count interface to Dante, check out the D800 and D800-Dante A-Net Distributors.
Need help choosing?   Compare A-Net Distributors

Stereo Links
Stereo Links are a powerful feature on the A320 and A360 Personal Mixers, allowing a pair of adjacent channels to be assigned to a single mix channel button.

The D400 and D400-Dante give the user the option of assigning stereo links using a set of DIP switches on the front panel of the A-Net Distributor instead of at the input device.

A-Net Offset
The A-Net Offset DIP switches on the D400 can be used to select which bank of channels from the incoming A-Net stream will be assigned to the Personal Mixers connected to the distributor. In larger systems, especially those using multiple A-Net Distributors, this allows extra channel assignment flexibility when connecting input sources to the network.
