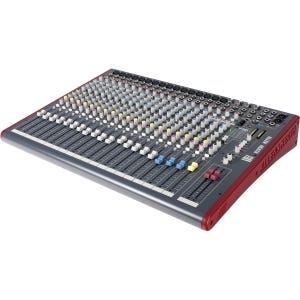

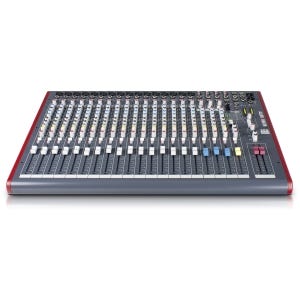

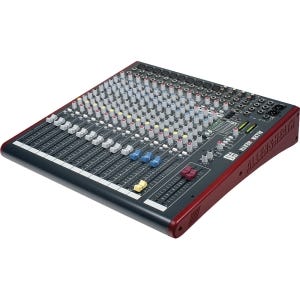

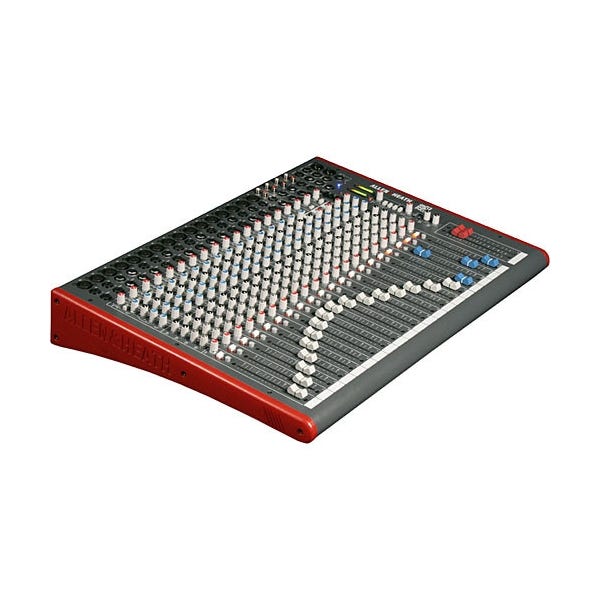

Allen & Heath ZED24 Live Sound & Recording Mixer with USB

Home Mixers Allen & Heath ZED24 Live Sound & Recording Mixer with USB
was $1,399.99 Special Price $1,099.99
24 Channel analog mixer with 16 mic/line + 3 stereo, 4 aux sends, 3 band swept mid EQ. 2 x 2 USB, I/O 100mm faders
Availability: In Stock
SKU
AH-ZED24





Allen & Heath warrants Allen & Heath branded hardware products and accessories contained in the original packaging against defects in materials for a period of ONE (1) YEAR from the date of original purchase by the end-user purchaser.

Features:
  - 16 mono channels
  - Neutrik mic XLR
  - Neutrik 1/4 inch jacks
  - Channel insert
  - Super wide gain ‘DuoPre’ mic line input
  - 3 band EQ with MusiQ
  - 4 auxes
  - Illuminated mute
  - Sound image pan
  - Illuminated PFL & peak warning indicator
  -  ALPS 100mm faders
  - 4 stereo channels with 2-band EQ and inputs for extra sources
  - Stereo returns & playback
  - All inputs with level control
  - 12 bar meters
  - Mono/stereo function on auxes 1&2
  - Monitor output section
  - Alt stereo output source
  - Configurable USB stereo audio in/out

Send options:
1) Main Mix Left + Right (Post-fade)
2) Main Mix Left + Right (Pre-Fade)
3) Auxes 1-2
4) Auxes 3-4

ZED-24 has an incredibly advanced feature-set for a mixer at this level – it has 23 independent sources to the mix, 10 independent outputs, 4 aux sends, Configurable USB audio in/out makes it easy to capture stereo recordings, playback and effects, a unique dual stereo input capability and some very advanced monitoring facilities. In fact, ZED-24 is so packed full of great features that you’d think it would cost much, much more!

USB audio flexibility
Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that’s it! CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations.

MusiQ
ZED-24 features a responsive 3-band, swept mid frequency EQ design which utilises MusiQ – with optimised slope (or Q factor) for equalising individual instruments.

DuoPre
Based on the proven pre-amps from the hugely successful PA series, ZED-24 has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge – 69dB of range to be exact – and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input and also matching to a higher input impedance.

More Information
MPN AH-ZED24
UPC / EAN 6938122229297
Brand Allen & Heath
Product Condition New
Availability Out of Stock
