Three Zone Audio Mixer for Commercial and Installed Sound Systems
This three-zone mixer is designed to manage background music, paging, and microphone audio across multiple areas from a single rack-mount unit. It allows users to route different audio sources to up to three separate zones, making it well suited for restaurants, offices, retail stores, bars, and other commercial environments that require flexible audio control without complex system programming.
Flexible Source Routing Across Multiple Zones
The mixer can send any connected source to any of the three output zones in any combination. This makes it easy to play the same music throughout a space or assign different audio sources to specific areas. Each zone operates independently, giving installers and operators precise control over how audio is distributed throughout a facility.
Microphone Inputs with Automatic Talk Over Function
Three mono XLR microphone inputs support paging and announcements, with a built-in talk over function that automatically reduces music volume when someone speaks into a microphone. This feature is especially useful for employee paging, customer notifications, and announcements without the need for manual volume adjustments. Rear-panel DIP switches allow talk over to be assigned to specific zones as needed.
Stereo Music Inputs for Playback Devices
Three stereo RCA inputs allow easy connection of background music sources such as media players, streaming devices, or audio distribution systems. These inputs support line-level signals and integrate seamlessly with the microphone inputs, providing a complete solution for both music and voice audio management.
Phantom Power and Installation-Friendly Connections
Selectable phantom power is available via rear-panel DIP switches, supporting the use of condenser microphones where required. All zone outputs are provided through Phoenix terminals, which are ideal for clean, secure wiring in permanent installations. Remote volume control connections are also available, allowing volume adjustments from wall-mounted controls located far from the rack.

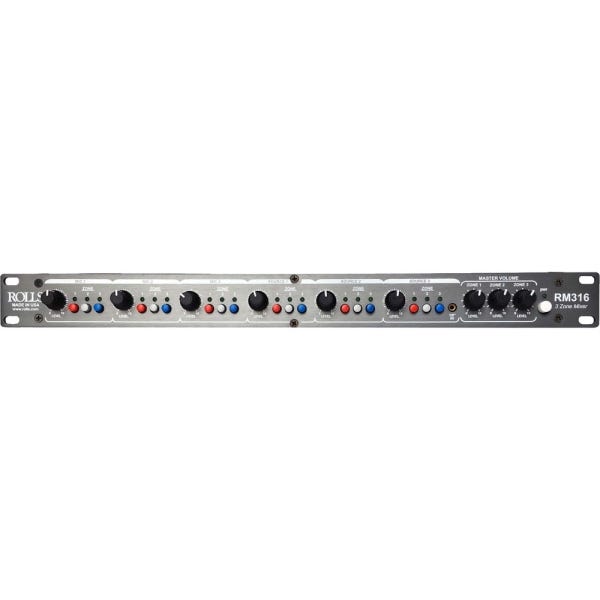

Front Panel Controls for Simple Daily Operation
The front panel features individual input level knobs, zone assignment controls, and master volume knobs for each output zone. This layout allows staff to make quick adjustments without technical expertise while keeping more advanced routing and configuration settings safely on the rear panel.
