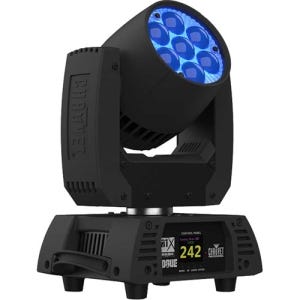

Chauvet Pro Rogue R2X Wash Multi-Color LED Intelligent Par Lighting Fixture

Home Intelligent / Moving Head Chauvet Pro Rogue R2X Wash Multi-Color LED Intelligent Par Lighting Fixture

was $2,180.45 Special Price $1,935.00

Multi-Color LED Intelligent Par Lighting Fixture

Availability: In Stock

SKU

ROGUER2XWASH

This product includes a 3 year limited manufacturer warranty from Chauvet Professional.

Features:

19 (25 W) RGBW quad-LEDs for powerful illumination
Zoom range of 7.3° to 64.3° for extensive coverage
Five zones of LED control for precise pixel mapping
Smooth color mixing and flexible DMX channel profiles
Ideal for stage productions, live events, concerts, and large area illumination

Details

Unleash Unmatched Versatility
The Rogue R2X Wash stands as an invaluable addition to rental and production inventories, designed to meet the demands of various settings. Its robust and reliable design ensures it remains a workhorse in the realm of moving wash lights, delivering a bright and potent light through 19 (25 W) RGBW quad-LEDs. The fixture's standout zoom range of 7.3° to 64.3° guarantees it covers expansive areas, making it a top choice for illuminating even the largest spaces.

Unmatched Pixel Mapping
Featuring five zones of LED control, the Rogue R2X Wash offers exceptional pixel mapping capabilities, allowing for precise and intricate designs. Smooth color mixing and a wide range of DMX channel profiles further contribute to its adaptability and usability across various applications and lighting needs.

Applications and Versatility
This fixture's versatility shines in its ability to cater to diverse settings, including stage productions, live events, concerts, and large area illumination, making it an ideal choice for lighting designers and event coordinators seeking a reliable, high-quality wash light.

More Information

More Information
MPN	ROGUER2XWASH
UPC / EAN	781462219383
Brand	Chauvet Pro
Product Condition	New
Availability	In Stock

Specs

Optical

Light Source: 19 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10000 K
Beam Angle: 7.3° to 35.2°
Field Angle: 11.2° to 51.2°
Cutoff Angle: 17.6° to 64.3°
Zoom Range: 7.3° to 64.3°
Lumens – Source: 10,300
Lumens – Output: 6,418
Illuminance (11.2°): 8,149 lux @ 5 m
Illuminance (51.2°): 726 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

Pan and Tilt: 540°/230°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Curves: 4
Built-in Automated Programs: Yes
Customizable Programs: No
Recall Custom Programs: No

Construction / Physical

Dimensions: 8.58 x 12.05 x 15.67 in (218 x 306 x 398 mm)
Weight: 22.8 lb (10.3 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

Connections

Power Connection: Edison (Local) plug to Neutrik® powerCON®
Power Input: Neutrik® powerCON®
Power Output: Neutrik® powerCON®
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM
DMX Channels: 15, 17, 22, 33, 54, or 56
Modes/Personalities: 8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V
Power and Current: 342 W, 2.85 A @ 120 V, 60 Hz
Power and Current: 338 W, 1.631 A @ 208 V, 60 Hz
Power and Current: 344 W, 1.488 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC, UKCA
IP Rating: IP20, dry location

What's Included

Rogue R2X Wash
Neutrik® powerCON® power cord
Omega bracket with mounting hardware

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
Neutrik® powerCON® cables
DMX Cables
Flight Case:CP6CASER2W
