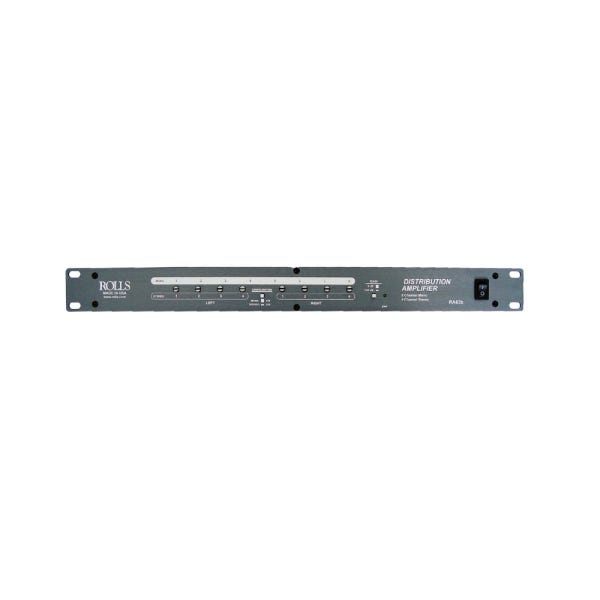

Rolls RA63b 8 CH Mono/4 CH Stereo Distribution Amplifier

Introducing the ROLLS RA63b Distribution Amplifier: Unleash Audio Excellence
Upgrade your audio distribution game with the cutting-edge ROLLS RA63b, an eight-channel mono or four-channel stereo distribution amplifier meticulously crafted for the contractor and install market. Built to deliver unparalleled performance and reliability, the RA63b is the ultimate solution for sound distribution systems, making it an indispensable addition to your audio toolkit.

Versatile Audio Distribution
The RA63b offers the flexibility of both mono and stereo operation, allowing you to channel a mono input to eight outputs or stereo inputs to four stereo outputs. Experience superior audio clarity and depth as you effortlessly distribute your sound signals across a wide range of setups.

Amplify Your Sound with Precision
With a +20 dB Gain switch, the RA63b empowers you to amplify your audio signals to perfection, ensuring every note and nuance reaches your audience with exceptional clarity. The screw terminal inputs and outputs provide a secure and efficient connection, simplifying your installation process.

Seamless Transition: RA63s to RA63b
The RA63b isn't just an amplifier – it's an innovation. Designed to replace the older RA63s model, the new RA63b boasts all the coveted features while introducing an easy-access stereo mono switch. Seamlessly toggle between stereo and mono modes, tailoring your sound distribution to the unique demands of your project.

Specifications:

• Input Impedance: Experience superior sound clarity with a balanced input impedance of 100 K Ohms.
• Max Input Level: Elevate your audio signals with a maximum input level of +22 dBV.
• I/O Connectors: Enjoy secure connectivity with screw terminal inputs and outputs, accommodating +, -, and ground connections.
• Output Impedance: Drive your sound distribution system with a balanced output impedance of 50 Ohms.
• Max Output Level: Amplify your audio to perfection with a maximum output level of +24 dB.
• Max Gain: Experience the power of +20 dB gain, enhancing the depth and richness of your sound.
• S/N Ratio: Immerse yourself in pristine audio quality with a signal-to-noise ratio exceeding 90 dB.
• Frequency Response: Revel in balanced and nuanced sound across a wide frequency range of 10 Hz to 40 kHz, +/- 1 dB.
• THD: Experience minimal distortion and enhanced clarity with a THD of less than .008%.
• Power: The RA63b operates efficiently with 120 VAC at 50-60 Hz, delivering 15VA of power.
• Size: The sleek 19" x 1.75" x 6.5" (48 x 4.5 x 17 cm) dimensions seamlessly integrate into your setup.
• Weight: Experience convenience without compromise, as the RA63b weighs only 7 lbs. (3 kg).

Experience Sound Distribution Mastery
From sophisticated installations to advanced sound distribution systems, the ROLLS RA63b is your gateway to audio excellence. Whether you're a seasoned contractor or an audio enthusiast, the RA63b empowers you to create immersive sound experiences that captivate and engage your audience. Elevate your audio distribution setup and witness the transformative power of precision sound with the ROLLS RA63b Distribution Amplifier. Experience the future of audio distribution – where clarity, flexibility, and innovation converge to redefine your sonic journey.
