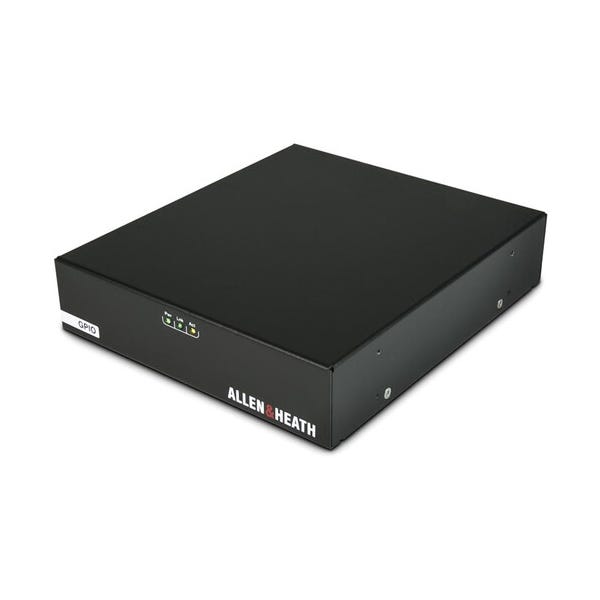

Allen & Heath DLIVE-GPIO dLive General Purpose I/O Interface, 8 GPI opto-isolated contact closures, 8 GPO normally open relays, TCP/IP PoE Compliant, 1/2 Rack

Home Allen & Heath DLIVE-GPIO dLive General Purpose I/O Interface, 8 GPI opto-isolated contact closures, 8 GPO normally open relays, TCP/IP PoE Compliant, 1/2 Rack

$899.00

dLive General Purpose I/O Interface, 8 GPI opto-isolated contact closures, 8 GPO normally open relays, TCP/IP PoE Compliant, 1/2 Rack

Availability: Special Order, Please Allow 2-4 Weeks For Delivery

SKU

AH-DLIVE-GPIO

Allen & Heath warrants Allen & Heath branded hardware products and accessories contained in the original packaging against defects in materials for a period of ONE (1) YEAR from the date of original purchase by the end-user purchaser.

Features:

Supports up to 8 GPIO units connected to a dLive system
Reliable Cat5 connection for distances under 100 meters
8 opto-isolated inputs for secure signal handling
8 relay outputs, including 7 normally open and 1 configurable
Industry-standard Phoenix connectors for easy wiring
Can be used freestanding or rack-mounted (1U / ½ width)
Power over Ethernet (PoE) compliant for streamlined installation
Ethernet L3 compatibility for network integration
Automatic firmware matching for consistent updates
I/O parameters configured through dLive Surface or Director software
Two 10V outputs with a maximum of 500mA

Details

Compatible with the dLive product series, the GPIO from Allen & Heath is a general purpose I/O interface for control integration of a dLive system and third party hardware. GPIO offers 8 opto-coupled inputs and 8 relay outputs on Phoenix connectors – 7 fixed N/O (normally open), plus 1 configurable N/O or N/C (normally closed), in addition to two +10V DC outputs. A Unique Auto Firmware matching system keeps Firmware in sync. 2x 10Volt 500mA outputs avoid the need for additional power supplies. This next generation unit can be PoE or DC powered and can live on the building IT network. Up to 8 GPIO modules can be connected to a dLive system via Cat5 cable, directly or via a network switch. GPIO functions are programmed using a dLive Surface or dLive Director software and can be configured for a number of install and broadcast applications, including EVAC (alarm / system mute), broadcast (on air lights, fader start logic) and theater automation (curtains, lights). The GPIO is an Eth

More Information

More Information
MPN	AH-DLIVE-GPIO
UPC / EAN	6938122246829
Brand	Allen & Heath
Availability	Out of Stock
