Allen & Heath M-MADI2-A 64 X 64 MADI card 48kHz / Requires DL-ADAPT-A For dLive S Class and C Class use
was
$1,599.00
Special Price
$1,299.00
64 X 64 MADI card 48kHz / Requires DL-ADAPT-A For dLive S Class and C Class use
Availability:
Special Order, Please Allow 2-4 Weeks For Delivery
SKU
AH-M-MADI2-A
Allen & Heath warrants Allen & Heath branded hardware products and accessories contained in the original packaging against defects in materials for a period of ONE (1) YEAR from the date of original purchase by the end-user purchaser.
Features:
- Offers 128 channels of high-quality audio transmission
- Can mirror outputs, pass through inputs, or manage word clock I/O
- Ensures reliable connectivity and backup options
- Daisy chain or split signals effortlessly
- Align perfectly with internal or external word clocks

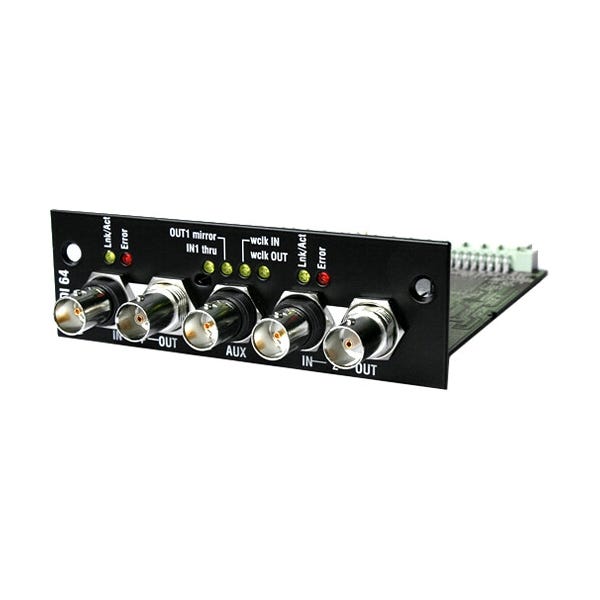

Dual port MADI card supports two streams of 64 channel bi-directional 24-bit 48kHz serial digital audio transmission using two 75 ohm coaxial cables per port. An additional AUX connector can be configured to mirror stream 1 outputs, pass thru stream 1 inputs, or as a word clock input or output. Daisy chain or split signals to multiple devices, sync with either stream or an external word clock. The second port can be configured as an independent stream or as a redundant backup connection using a second cable. Signals from either stream can be routed to the iLive channels in blocks of 8. iLive and GLD outputs can be patched to MADI and appear at both stream outputs.
M-MADI is one of a range of digital audio networking options available for iLive and GLD to enable integration with other systems, digital mic splitting, multi-track recording and system expansion. It can be fitted to the Port B expansion slot in iLive fixed format MixRacks (iDR-16, iDR-32, iDR-48, iDR-64) or expander
| MPN | AH-M-MADI2-A |
|---|---|
| Brand | Allen & Heath |
| Availability | Out of Stock |
