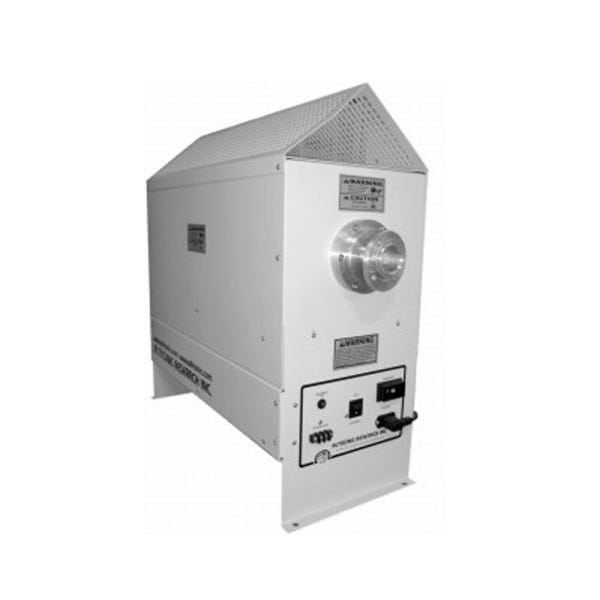

Altronic Research 6410E1 Forced Air-Cooled 10kw Dummy Load, 1-5/8" EIA Flange

Introducing the Altronic Research 6410E1 Forced Air-Cooled 10kW Dummy Load
Elevate your RF applications with the Altronic Research 6410E1, a powerhouse in the world of air dielectric coaxial loads. Part of the renowned 6400 Series, this model delivers the exceptional performance of the 6700 Series but in a more compact, user-friendly package. It is engineered for 10 kW continuous duty and is perfect for use in busy transmitter areas, offering flexible mounting options either atop a transmitter or inside a cabinet.

Optimized Performance with Advanced Cooling
The 6410E1 distinguishes itself by operating efficiently under both static and forced air conditions, ensuring stable RF characteristics across its broad frequency range from DC to 240 MHz. This versatility makes it an ideal choice for demanding RF environments where performance and reliability are critical.

Compact and Oil-Free Design
Designed with space efficiency in mind, the 6410E1 features a small, compact, oil-free design, making it an advantageous solution for crowded workspaces. Its physical footprint is modest, measuring just 28.5″ x 26.9″ x 11.3″, and it weighs only 37 lbs., allowing for straightforward integration into various setups without the hassle.

Robust Build and Easy Connectivity
This dummy load is not only built to last but also designed for convenience. It includes a 1-5/8" EIA Flange that facilitates simple and secure connections. Compatible with AC power systems of either 115 VAC at 50/60 Hz or 230 VAC at 50/60 Hz, the 6410E1 adapts effortlessly to your existing power infrastructure, ensuring a seamless setup process.

Detailed Specifications for Precision Use
The 6410E1 boasts meticulous engineering, offering a maximum VSWR of 1.10:1 from DC to 110 MHz and 1.15:1 from 120 to 240 MHz. These specifications highlight its capability to handle a wide range of frequencies with minimal signal reflection, thereby enhancing overall efficiency.
