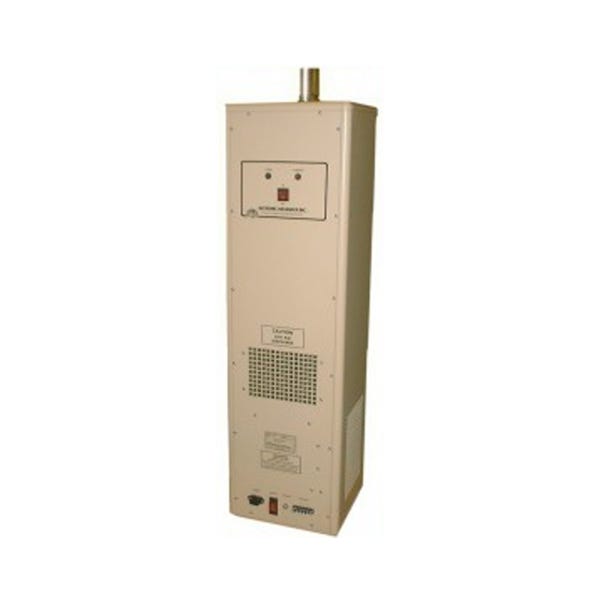

Altronic Research 6705E1 Forced Air-Cooled 5kw Dummy Load, 1-5/8" EIA Flange

Discover Advanced RF Handling with Altronic Research 6705E1
Immerse yourself in the world of sophisticated RF technology with the Altronic Research 6705E1 Forced Air-Cooled 5kW Dummy Load. Part of the esteemed 6700 Series, this device provides exemplary air-cooled terminations for 50-ohm coaxial transmission line systems, ensuring stable RF characteristics across all power levels. Its design is tailor-made for contemporary RF applications, balancing rugged durability with precise engineering to deliver reliability, serviceability, and cost-effectiveness.

Engineered for High-Performance Applications
The 6705E1 is designed to meet the rigorous demands of high-performance RF applications, offering a continuous duty power rating of 5kW. It's built to handle a frequency range from DC up to 240 MHz, with a VSWR of 1.10:1 up to 110 MHz and 1.15:1 up to 240 MHz. This ensures minimal signal loss and superior performance across a wide operational spectrum, making it ideal for a variety of RF environments.

Compact and Robust Construction
Despite its powerful capabilities, the 6705E1 maintains a compact footprint of 13″ x 13″ x 51 1/4″, making it suitable for installation in spaces where efficiency and size are crucial. Weighing 50 lbs., it provides a solid yet manageable setup that can be easily integrated into existing systems without the need for significant modifications.

Seamless Connectivity and Power Flexibility
Equipped with a 1-5/8" EIA Flange, the 6705E1 offers seamless connectivity to other RF components. It supports a versatile power input range, compatible with both 115 VAC and 230 VAC at 60 Hz, and is also available for 50 Hz power systems. This flexibility ensures it can be deployed in diverse global settings without additional equipment.

Durable Design with Aesthetic Appeal
Not only is the 6705E1 functional and efficient, but it also features a stylish beige splatter finish that enhances its visual appeal while protecting against environmental factors. This finish ensures the dummy load remains in excellent condition, even under rigorous use, maintaining both its functionality and its aesthetic integrity over time.
