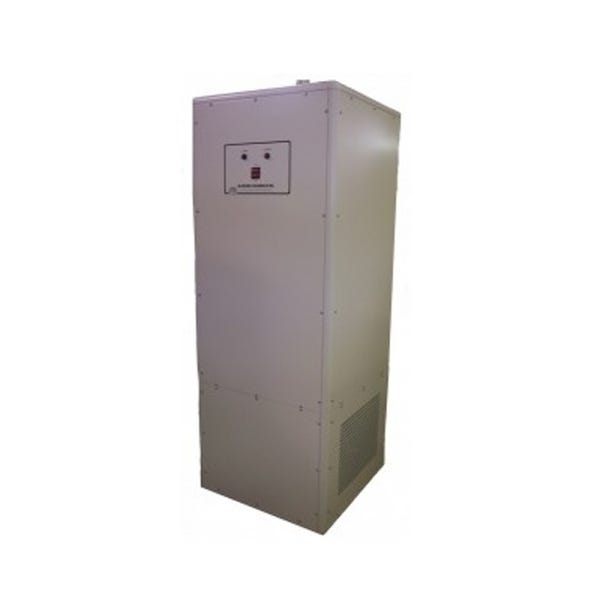

Altronic Research 6715E3 Forced Air-Cooled 15kW Dummy Load, 3-1/8" EIA Flange

Explore Top-Tier RF Performance with the Altronic Research 6715E3
Introducing the Altronic Research 6715E3, a standout model in the 6700 Series, designed as a robust air-cooled termination for 50-ohm coaxial transmission line systems. This unit is celebrated for its excellent and stable RF characteristics across a full range of operational power, making it a prime choice for sophisticated RF applications. Whether for testing, adjustments, or continuous operation, the 6715E3 ensures optimal performance.

Reliable and Rugged for Demanding Environments
Crafted for continuous duty, the 6715E3 can handle a substantial 15kW power load. Its design focuses on reliability and durability, offering a device well-suited to the rigorous demands of both commercial and research environments. The precision engineering of the 6700 Series guarantees that this dummy load can withstand extensive use while maintaining high performance.

Wide Frequency Range for Versatile Applications
This dummy load operates efficiently across a frequency range from DC to 240 MHz, with a variable VSWR of 1.10:1 up to 110 MHz and 1.15:1 to 240 MHz. Such capabilities allow it to be used in a variety of settings and applications, ensuring broad compatibility and high functionality in any RF system setup.

Designed for Easy Integration
The 6715E3 features a 3-1/8" EIA Flange, making it easily integrable with existing setups. It supports diverse power requirements with options for 115 VAC or 230 VAC at 60 Hz, and is also available for 50 Hz systems, accommodating a wide range of operational standards. This flexibility ensures that it can be deployed effortlessly across different global installations.

Compact and Heavy-Duty Construction
Despite its power, the 6715E3 maintains compact dimensions of 19″ x 19″ x 54 1/4″, making it manageable within various spatial constraints. Weighing 90 lbs., it remains portable yet stable. Finished in beige splatter, it not only looks professional but also provides extra protection against physical and environmental elements.
