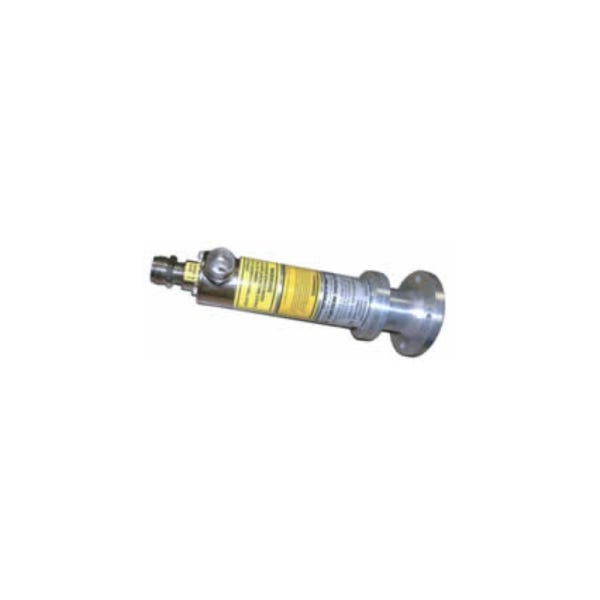

Altronic Research 9705SB Water-Cooled Dummy Load 5kW, Stub Connector

Optimize Your RF Line Systems
The Altronic Research 9705SB Water-Cooled Dummy Load is an essential component for maintaining the efficiency and reliability of 50-ohm coaxial transmission line systems. It ensures optimal RF characteristics throughout its power range, which is crucial for modern RF applications requiring precision and robustness.

Built to Last
Featuring a precision design with a combination of brass and aluminum, the 9705SB is crafted to withstand the demands of continuous usage. This dummy load is not only rugged but also provides a non-contaminating water circuit, making it ideal for both open and closed system applications.

Technical Specifications Unveiled
This dummy load supports a 5kW continuous CW power rating and operates smoothly across a frequency range of 60 Hz to 800 MHz. With a VSWR as low as 1.10:1 up to 800MHz, it ensures minimal signal loss. The unit also manages a maximum outlet water temperature of 90°C and can handle inlet water pressures up to 70PSI, versatile for various environments.

Connectivity and Installation Flexibility
The Altronic Research 9705SB is equipped with standard water connectors for both 3/4" garden hoses and 1/2" NPT, along with a stub connector for RF connections, offering flexible installation options to fit different setups and requirements.
