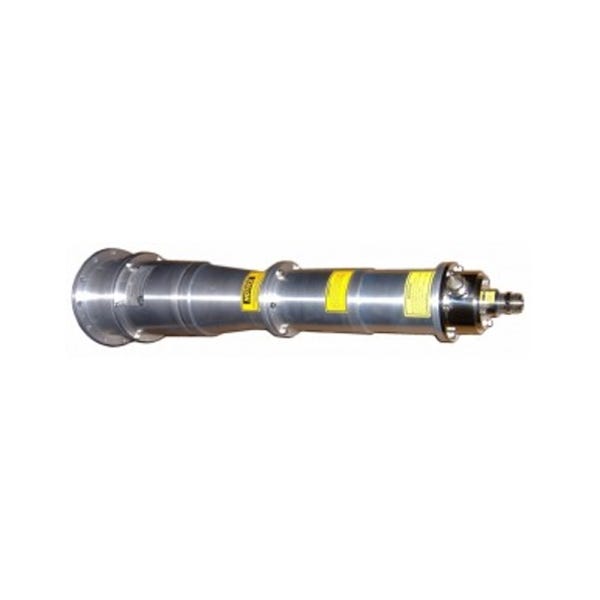

Altronic Research 97125E4 Water-Cooled 125kW Dummy Load, 4-1/16" EIA Flange
$10,405.00
High-Capacity 125kW Water-Cooled Dummy Load with Extended Frequency Optimization, Robust Connectivity, and Efficient Cooling for Advanced RF Systems
Availability:
Special Order, Please Allow 2-4 Weeks For Delivery
SKU
Model 97125E4
Features:
- Economical and effective for managing high-power RF applications
- Utilizes a ceramic, film-type cylindrical resistor for efficient power dissipation
- Simple maintenance with easily replaceable resistors
- Non-contaminating water circuit suitable for both open and closed systems
- Durable brass and aluminum construction; operational in any position
Explore the Altronic Research 97125E4 Water-Cooled Dummy Load
Introducing the Altronic Research 97125E4, a high-performance water-cooled dummy load, engineered for 50-ohm coaxial transmission line systems. This model boasts a 125kW continuous CW power rating and comes equipped with a 4-1/16" EIA flange. Designed to offer excellent and stable RF characteristics across a broad operating range, this dummy load is an essential tool for modern RF applications demanding precision and reliability.
Built for Ultimate Reliability and Serviceability
The 97125E4 is part of the esteemed Water Cooled Series known for its rugged, precision engineering. This series ensures optimal reliability, serviceability, and convenience, making it a preferred choice for RF professionals looking for durable and economic solutions in demanding environments.
Performance and Specifications
This dummy load operates with a nominal impedance of 50 ohms and covers a frequency range from 60 Hz to 450 MHz, which can be extended up to 800 MHz with optimization. It features a VSWR of 1.15:1 up to 800 MHz. The specifications are tailored to facilitate a wide range of RF applications, from basic tests to complex integrations.
Advanced Cooling and Connectivity
The 97125E4 incorporates a sophisticated water-cooling system capable of handling a maximum outlet water temperature of 90°C and a maximum inlet water pressure of 100 PSI, with a minimum water flow of 15 gpm. It features versatile water connector options including 3/4" garden hose or 3/4" NPT, alongside a substantial 4-1/16" EIA RF flange, ensuring robust and reliable connections.
Compact and Versatile Design
Despite its extensive capabilities, the 97125E4 maintains a compact footprint, measuring approximately 8 1/2″ x 31″ and weighing around 36 lbs. The unit's conversion coating and bright nickel finish not only enhance its aesthetic appeal but also contribute to its durability, allowing it to withstand various environmental conditions.
| MPN | Model 97125E4 |
|---|---|
| Color | Nickel |
| Brand | Altronic Research |
| Product Condition | New |
| Availability | Out of Stock |
