Altronic Research 9715E1 Water-Cooled 15kW Dummy Load, 1-5/8" EIA Flange

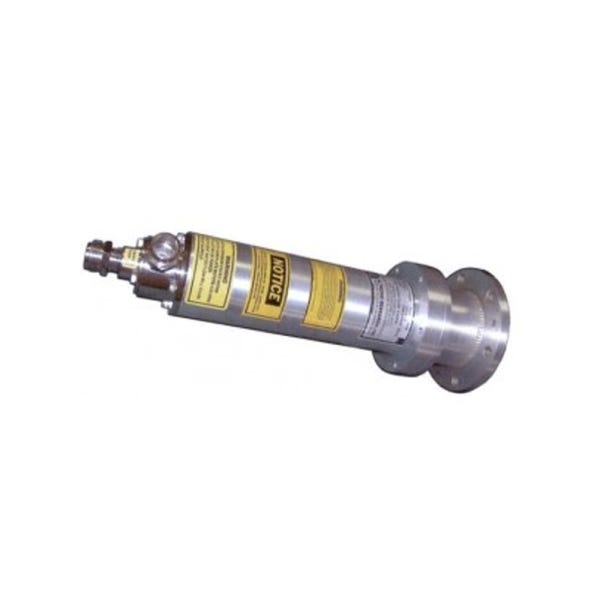

Introducing the Altronic Research 9715E1 Water-Cooled Dummy Load
Experience the robust Altronic Research 9715E1, a water-cooled 15kW dummy load designed with a 1-5/8" EIA flange. This product is an exceptional component of the Water Cooled Dummy Load Series, ideal for 50-ohm coaxial transmission line systems that require stable and reliable RF performance. Tailored for continuous CW operations, this dummy load meets the needs of modern RF applications with its combination of performance, precision, and durability.

Optimized for Performance and Reliability
The 9715E1 stands out for its rugged, precision-engineered design which ensures not just reliability but also easy serviceability and convenient handling. This model is well-suited for the demands of today's sophisticated RF environments, providing both economic benefits and operational efficiency.

Advanced Technical Specifications
With a power rating of 15kW and a nominal impedance of 50 ohms, the 9715E1 covers a frequency range from 60 Hz to 800 MHz. It also boasts an impressive VSWR of 1.10:1 up to 800MHz, ensuring excellent RF characteristics across a wide spectrum of applications. This makes it a versatile tool for various testing and operational needs.

Efficient Cooling and Connectivity
The dummy load features a comprehensive cooling system that effectively manages a maximum outlet water temperature of 90°C and can withstand an inlet water pressure up to 100 PSI, with a water flow rate of 4gpm. It provides flexible water connector options, including 3/4" garden hose and 1/2" NPT, coupled with its reliable RF connectivity through the 1-5/8" EIA flange.

Compact and Durable Design
Despite its powerful capabilities, the 9715E1 maintains a compact size, measuring approximately 4 1/2" x 15" and weighing about 9 1/2 lbs. The unit's exterior features a conversion coating and bright nickel finish, enhancing its durability and suitability for various operational environments.
