Altronic Research 97200E3 Water-Cooled Dummy Load 200kW, 3-1/8" EIA Flange

High-Performance Water-Cooled Technology

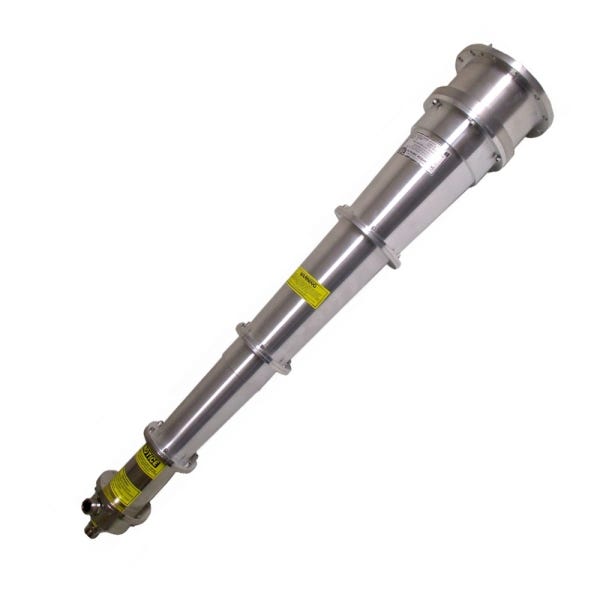

Meet the Altronic Research 97200E3 Water-Cooled Dummy Load, a highly efficient solution for 50-ohm coaxial transmission systems. This cutting-edge product stands out with its capability to handle up to 200kW of continuous CW power. Designed for stability and superior RF performance, it ensures reliable operation across a wide frequency range from 60 Hz to 450 MHz, which can be extended to 800 MHz with optional enhancements.

Designed for Durability and Ease of Use
The Altronic Research 97200E3 is built to last. Featuring a robust design with a conversion coating and bright nickel finish, this dummy load is both durable and aesthetically pleasing. Its design includes easily replaceable ceramic, film-type cylindrical resistors, ensuring long-term serviceability and reliability without the need for field adjustments.

Optimal Cooling and Safety Features
Safety and performance go hand in hand with the Altronic Research 97200E3. It boasts a maximum outlet water temperature of 90°C and can handle an inlet water pressure up to 100PSI. The water flow requirement is minimal, maintaining 19gpm at a 45°C inlet, which helps in sustaining optimal operating conditions and prolonging the equipment's lifespan.

Versatile Connectivity Options
Flexibility in connectivity is key for any high-performance equipment. The Altronic Research 97200E3 features a standard 3-1/8" EIA flange for RF connections and offers two water connector options: 3/4" garden hose and 3/4" NPT. This versatility makes it suitable for a wide range of setups and applications.

Compact and Lightweight Design
Despite its powerful capabilities, the Altronic Research 97200E3 is surprisingly compact and lightweight. Weighing approximately 41 lbs. and measuring about 8 1/2" x 42", it is easy to install and integrate into various setups, providing a practical solution without sacrificing space or performance.
