Altronic Research 9725E1 25kW, 1-5/8" EIA Flange

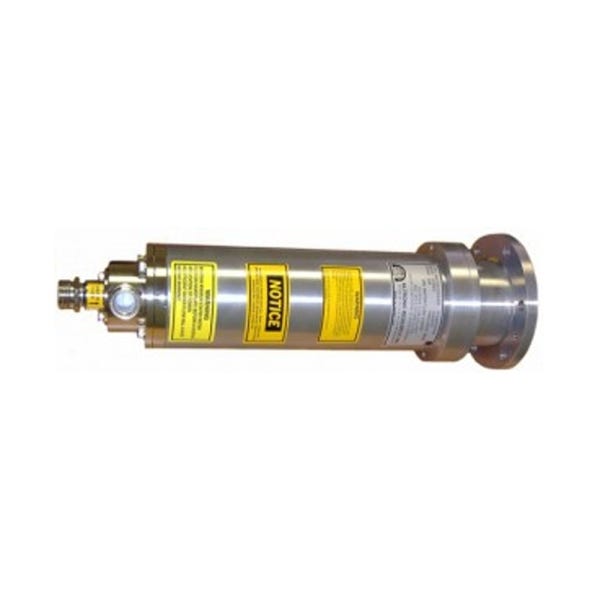

Meet the Altronic Research 9725E1 Water-Cooled Dummy Load
Dive into the capabilities of the Altronic Research 9725E1, a water-cooled dummy load that offers 25kW of continuous CW power and is equipped with a 1-5/8" EIA flange. Perfect for 50-ohm coaxial transmission line systems, this unit delivers excellent and stable RF characteristics across a wide operating range. Its design is tailored for modern RF applications, where precision, reliability, and efficiency are key.

Designed for Durability and Performance
The 9725E1 is part of the renowned Water Cooled Series known for its rugged, precision-engineered builds that ensure both reliability and serviceability. This series stands out in today's RF industry by providing convenient and economical solutions without compromising on quality or performance, making it ideal for various testing and operational environments.

Technical Excellence in RF Applications
This dummy load boasts a nominal impedance of 50 ohms and operates across a frequency range from 60 Hz to 800 MHz, with a very low VSWR of 1.10:1 up to the maximum frequency. Such specifications make it incredibly versatile, able to handle complex and varied RF tasks with ease.

Efficient Cooling and Connectivity Options
The 9725E1 features an advanced cooling system that effectively manages a maximum outlet water temperature of 90°C and supports an inlet water pressure of up to 100 PSI. With a water flow of 6gpm and connectivity options like 3/4" garden hose or 1/2" NPT, it ensures robust and reliable performance under demanding conditions.

Compact and Robust Construction
Despite its powerful capabilities, the 9725E1 remains relatively compact, measuring approximately 4 1/2" x 16 1/2" and weighing about 16 lbs. The device's finish includes a conversion coating and bright nickel, enhancing its durability and suitability for a wide range of operational settings.
