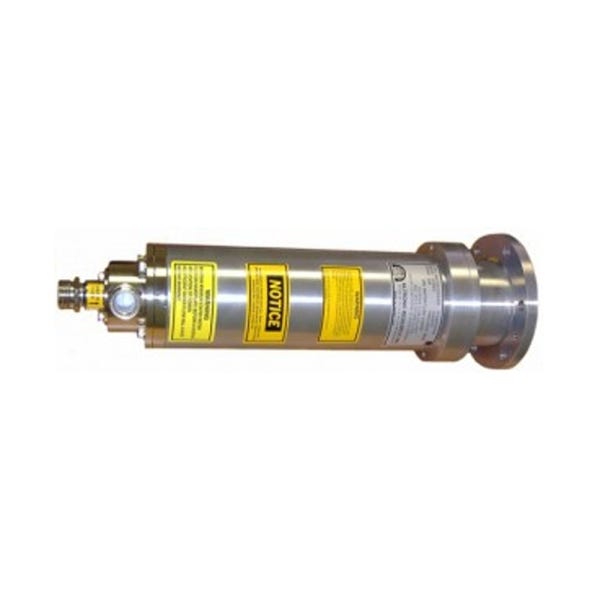

Altronic Research 9725E6 Water-Cooled 25kW Dummy Load, 6-1/8" EIA Flange

Introducing the Altronic Research 9725E6 Water-Cooled Dummy Load
Step into the world of superior RF management with the Altronic Research 9725E6, a top-tier water-cooled dummy load designed for 50-ohm coaxial transmission line systems. Equipped with a 6-1/8" EIA flange and a power capacity of 25kW continuous CW, this unit stands out for its exceptional and stable RF characteristics, making it indispensable for modern RF applications.

Robust and Reliable Performance
Built within the rigorous standards of the Water Cooled Series, the 9725E6 exemplifies ruggedness and precision design. This series is celebrated for providing reliability, serviceability, and convenience, essential for today’s demanding RF environments. The 9725E6 ensures consistent performance, integrating seamlessly into both new and existing setups.

Optimized for Modern RF Applications
This dummy load operates with a nominal impedance of 50 ohms and a comprehensive frequency range from 60 Hz to 800 MHz, boasting a VSWR of 1.10:1 up to 800 MHz. These features cater to a broad spectrum of RF testing and operational needs, supporting high-quality, dependable outcomes.

Advanced Cooling and Versatile Connectivity
The 9725E6 features an efficient cooling system capable of handling a maximum outlet water temperature of 90°C and an inlet water pressure of up to 100PSI. The unit supports a water flow of 6gpm and includes adaptable connectors for both 3/4" garden hose and 1/2" NPT, ensuring robust and flexible performance across various applications.

Compact Design with Industrial Durability
Despite its powerful features, the 9725E6 maintains a compact footprint, measuring just 4 1/2″ x 16 1/2″ and weighing approximately 16 lbs. Finished with a conversion coating and bright nickel, it’s built to last under rigorous use while fitting efficiently in limited spaces.
