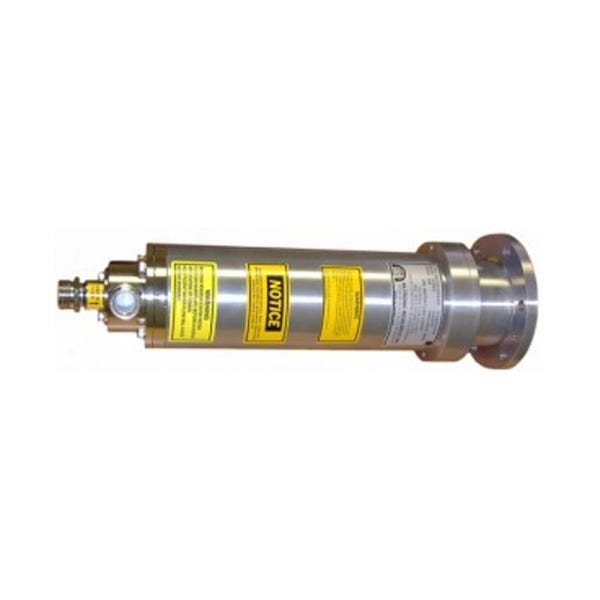

Altronic Research 9725LC Water-Cooled Dummy Load 25kW, LC Female Connector

Explore the Altronic Research 9725LC Water-Cooled Dummy Load
Step into the world of efficient RF handling with the Altronic Research 9725LC, a top-tier water-cooled dummy load designed for 50-ohm coaxial transmission systems. With a continuous CW power rating of 25kW and an extensive frequency range from 60 Hz to 800 MHz, this unit provides stable and exceptional RF performance suited for a variety of modern applications.

Robust Design for Maximum Reliability
The Altronic Research 9725LC boasts a rugged, precision-engineered construction that ensures both reliability and longevity. Its robust brass and aluminum build, complemented by a protective conversion coating and bright nickel finish, stands up to rigorous use while maintaining optimal performance.

Advanced Cooling Features for Safe Operation
This dummy load is equipped with a sophisticated cooling system designed to handle high-power applications safely. It maintains a maximum outlet water temperature of 90°C and an inlet water pressure up to 100PSI, with a water flow rate of 6gpm, ensuring the device operates within safe thermal parameters during extended use.

Flexible Connectivity for Diverse Applications
The LC female connector on the Altronic Research 9725LC allows for versatile integration with various RF systems. Accompanied by additional water connectors for either a 3/4″ garden hose or a 1/2″ NPT, this dummy load is not only effective but also adaptable to different setups, enhancing its utility across multiple platforms.

Compact and Easy to Handle
Despite its powerful capabilities, the Altronic Research 9725LC is designed to be compact and manageable. Weighing approximately 16 lbs. and with dimensions of about 4 1/2″ x 16 1/2", it offers a space-saving solution without compromising on power, making it an ideal choice for spaces where size is a consideration.
