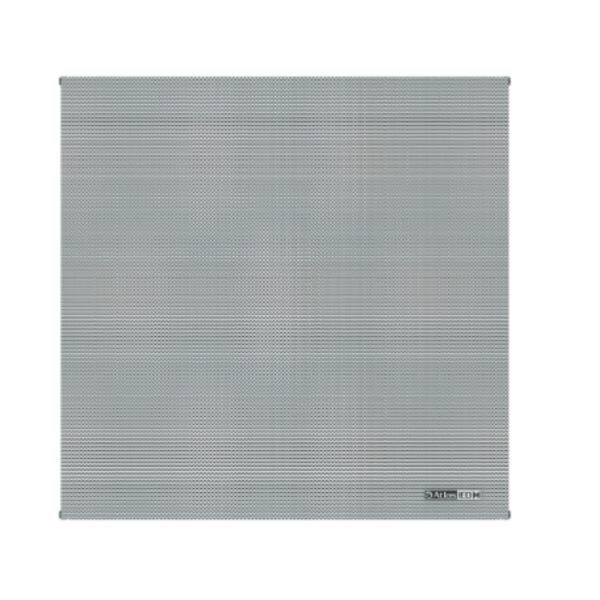

Atlas Sound DA-22SYS Indoor 2' x 2' Suspended Ceiling Mount Dante PoE IP Speaker

Efficient and Powerful Audio Solution with Atlas Sound DA-22SYS
The Atlas Sound DA-22SYS is a cutting-edge 2' x 2' suspended ceiling mount IP PoE amplified loudspeaker designed to deliver high-quality audio performance. Utilizing Audinate’s Dante digital audio transport platform, this advanced speaker system is perfect for environments requiring clear and reliable sound distribution, such as offices, schools, and commercial spaces.

Integrated PoE Amplifier for Superior Sound
The DA-22SYS features an integrated PoE amplifier capable of producing up to 15 watts RMS in single-channel mode or up to 2 x 10 watts in dual-channel mode when powered by IEEE 802.3at compliant PoE switches. This ensures robust audio output with minimal power consumption, making it an efficient choice for various audio applications. The top panel-mounted RJ-45 connector allows for seamless network integration.

Advanced Configuration and Control
This speaker system offers user-configurable amplifier modes, input EQ, level control, and masking with room tuning EQ, all managed via the AtlasIED IP Discovery and Control software. The software facilitates easy discovery and management of active IP speakers on the network, enabling users to assign custom names and locations for efficient system management. The audible ping-me locator feature simplifies physical speaker identification.

Versatile Dual Mode Configuration
The DA-22SYS can be configured for dual mode to drive a secondary passive speaker of the same type. In this setup, the amplifier power is split between the DA-22SYS and the 8-ohm passive speaker, with both sharing the same factory EQ settings. This flexibility allows for expanded coverage and optimized audio performance across larger areas.

High Efficiency and Wide Frequency Response
Engineered for high efficiency, the DA-22SYS boasts a sensitivity of 96dB 1W/1m and a wide frequency response of 70Hz - 15.5kHz. This makes it ideal for speech and general messaging playback, ensuring clear and intelligible audio. The 8" coaxial design further enhances sound quality, providing a balanced and immersive listening experience.
