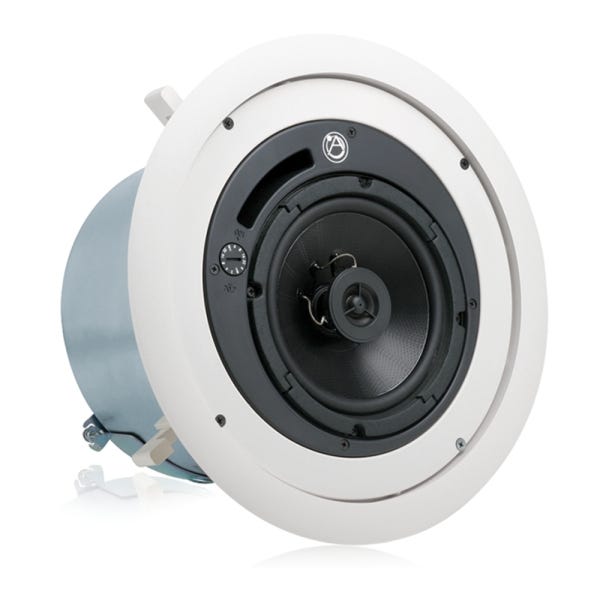

Atlas Sound FAP62T 6" Coaxial Speaker System with 70.7/100V-32W Transformer and 8 Ohms Bypass

Enhance Your Space with Atlas Sound Coaxial Ceiling Speaker
The Atlas Sound 6" Coaxial In-Ceiling Speaker with a 32-Watt 70/100V Transformer and Ported Enclosure, known as the Model FAP62T, is designed to meet the rigorous demands of owners, architects, contractors, and consultants. This high-fidelity sound reproduction system combines aesthetic appeal with performance, making it a superior choice for a variety of business music and public address applications. Its compact enclosure and broad dispersion are ideal for environments with low ceilings, ensuring clear sound distribution across the space.

Legendary Sound Quality and Construction
Drawing on the legacy of AtlasIED’s Strategy Series II FA Series, the FAP62T features components that match these high standards. The speaker is equipped with a 1" voice coil driver boasting a polypropylene cone and a butyl rubber surround for durability and excellent sound quality. Additionally, a 19mm tweeter made from robust PEI ensures crisp, clear high frequencies. High sensitivity means the speaker operates efficiently, achieving the desired sound pressure level with less power.

Optimized and User-Friendly Design
The FAP62T speakers are pre-assembled in a ported deep-drawn enclosure that is acoustically optimized, coupled with a specially designed low saturation 70.7V/100V transformer that minimizes insertion loss and preserves low-frequency response. A conveniently located front-mounted switch allows for easy tap selection without the need to disassemble the speaker from the ceiling, streamlining both initial installation and future adjustments.

Innovative Installation Features
Atlas Sound’s FAP62T simplifies installation with Strategy Series II style "dog leg" tabs, which facilitate quick and secure mounting in both drop tile and drywall ceilings. The included tile bridge system features triangular mounting rails and a c-ring assembly to support various ceiling materials and structures. For new construction, an optional trim ring (model FAP62-TR) can be used to delineate the speaker’s location during the drywall installation process, ensuring precise integration into the architecture.

Architectural Integration
Designed to blend seamlessly into contemporary architectural styles, the FAP62T features an attractive press-fit grille that integrates smoothly with the ceiling, maintaining the aesthetic integrity of the installation space. This speaker not only delivers superior audio performance but also enhances the visual appeal of its environment, making it an ideal choice for upscale business settings and public spaces.
