Atlas Sound UKT25-2C-U161-8 8" Dual Voice Coil Loudspeaker for Fire Protective Signaling

Dual Voice Coil Fire Safety Speaker System
The Atlas Sound UKT25-2C-U161-8 is a high-performance 8" dual voice coil loudspeaker system designed specifically for fire protective signaling. This comprehensive package includes a sophisticated speaker with dual 25V-5W transformers and a U161-8 baffle, providing an advanced and efficient communication tool for emergency situations. Whether you're upgrading an existing fire safety system or equipping a new building, this UL-listed speaker ensures that critical alerts and instructions are delivered with exceptional clarity, coverage, and redundancy.

Superior Sound Quality with Dual Voice Coil Technology
At the core of the UKT25-2C-U161-8 is an 8" speaker featuring dual voice coils, a dual (whizzer) cone, and a robust 10 oz. ceramic magnet. This advanced configuration delivers extended frequency response, ensuring that both alarm tones and voice instructions are reproduced with high intelligibility and minimal distortion. The dual voice coil design provides an extra layer of reliability, allowing for continued operation even if one coil fails, which is crucial in life-safety applications.

Efficient Installation with Pre-Mounted Dual Components
Installation efficiency is a key feature of the UKT25-2C-U161-8. The speaker comes with two factory-mounted 25V-5W transformers, eliminating the need for complex on-site transformer wiring. The included 6" color-coded leads further simplify the connection process, reducing installation time and potential wiring errors. This pre-assembled design makes the UKT25-2C-U161-8 an ideal choice for large-scale installations where time, consistency, and redundancy are critical factors.

UL-Listed for Fire-Protective Signaling Systems
Safety compliance is paramount in fire protection systems, and the UKT25-2C-U161-8 meets the stringent requirements of UL Standard 1480 for speakers in fire-protective signaling systems. This certification ensures that the speaker performs reliably under emergency conditions, providing peace of mind to building owners, managers, and occupants alike. To maintain UL compliance, remember to pair this speaker with a UL-approved enclosure.

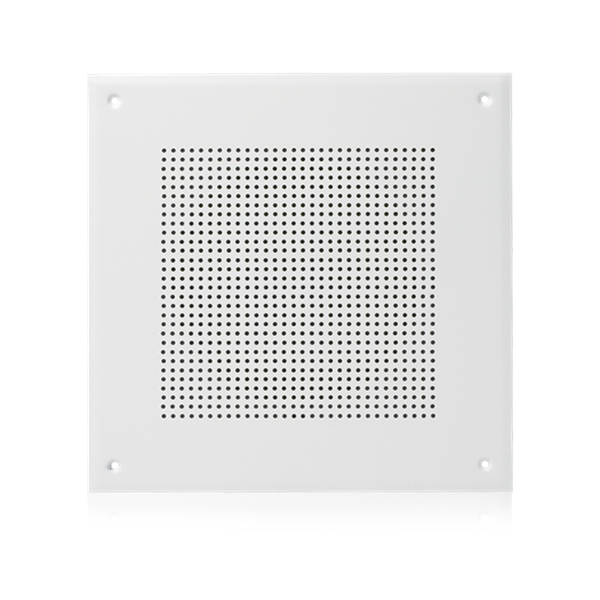

Aesthetic Integration with U161-8 Baffle
The included U161-8 baffle is designed to seamlessly blend the speaker into various ceiling designs. This attention to aesthetics ensures that your fire safety system maintains a professional and unobtrusive appearance while still providing critical functionality. The baffle's design complements a wide range of architectural styles, making it suitable for installations in office buildings, hotels, schools, and other public spaces.

Advanced Features for System Integration and Reliability
The UKT25-2C-U161-8 includes DC blocking capacitors for each voice coil, making it suitable for line supervision applications. This feature allows the speaker to be integrated into sophisticated fire alarm systems that continuously monitor the integrity of the speaker lines, ensuring that any faults in the system are quickly detected and addressed. The dual 1" voice coils provide excellent sound reproduction and redundancy, crucial for delivering clear and intelligible emergency messages even in the event of a partial failure.

Cost-Effective Solution for High-Reliability Fire Safety Audio
As part of Atlas Sound's UKT Series, this speaker offers a cost-effective solution without compromising on quality, performance, or reliability. The combination of durable components, UL certification, dual voice coil technology, and thoughtful design makes the UKT25-2C-U161-8 an excellent investment for any facility requiring a highly reliable fire safety audio system. Its versatility allows it to meet a variety of aesthetic and application requirements, making it a go-to choice for installers and system designers who prioritize both performance and redundancy.
