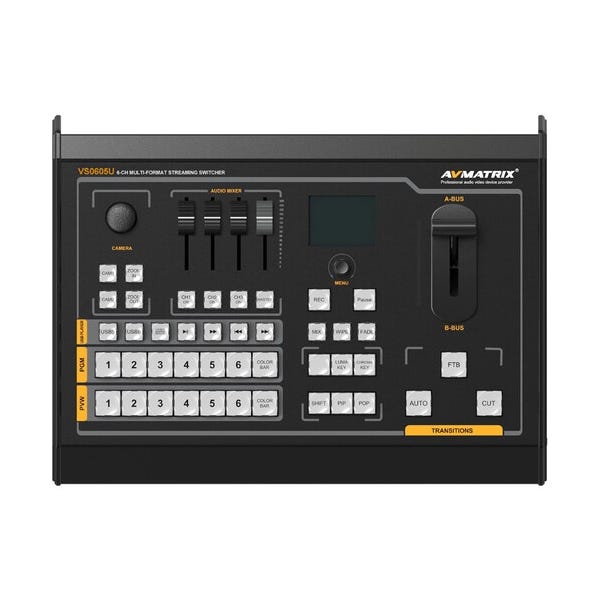

AVMatrix VS0605U 6-Channel SDI/HDMI Multi-Format Streaming Switcher

Master Your Multi-Source Productions with AVMatrix VS0605U
The AVMatrix VS0605U 6-Channel SDI/HDMI Multi-Format Streaming Switcher is a powerhouse designed for complex live event production and broadcast scenarios. Offering a versatile input array with four 1080p60 SDI, two UHD 4K60 HDMI, two DVI-I, and two USB Type-A media player inputs, this desktop switcher scales everything to up to 1080p60. Whether you're covering sports, running a virtual studio, or streaming a concert, the VS0605U ensures your production is seamless and professional.

High-Definition Output and Monitoring
Equipped with three SDI/HDMI PGM outputs, two SDI/HDMI multiview outputs, and an SDI AUX out, the VS0605U supports comprehensive monitoring and output capabilities. You can simultaneously monitor six channels plus preview and program output in a detailed 9-window split, complete with clock and settings information. This layout is perfect for keeping track of all video sources and outputs during live operations.

Stream with Ease Using Advanced Connectivity
The VS0605U features a USB Type-C interface for UVC/UAC streaming, enabling plug-and-play setup with a 1080p60 uncompressed video/audio capture workflow. This straightforward connectivity is ideal for live streaming, offering high-quality, low-latency video to platforms such as YouTube, Twitch, or any professional broadcasting service.

Robust Audio Mixing Capabilities
A built-in audio mixer manages six channels of SDI/HDMI/USB embedded audio along with two XLR/RCA audio inputs. Each of the three stereo channels can be individually controlled via faders and corresponding buttons, allowing for precise audio adjustments and enhancements during your live production.

Advanced Production Features
The VS0605U doesn’t just switch and stream; it enhances your production quality with advanced features. Enjoy PiP and PoP modes with adjustable size and position, chroma/luma key for real-time background matting in virtual studios, and smooth transitions like T-bar/Auto/Cut and Mix/Fade/Wipe effects. Additionally, control PTZ cameras directly from the switcher’s joystick over VISCA and Pelco-D/P protocols, making it a truly comprehensive solution for dynamic live event production.
