Blackmagic Design BMD-CINECAMCPYXD60LFEF PYXIS 6K Cinema Box Camera (Canon EF)

Box-Style Full-Frame 6K Camera With Canon EF Lens Support

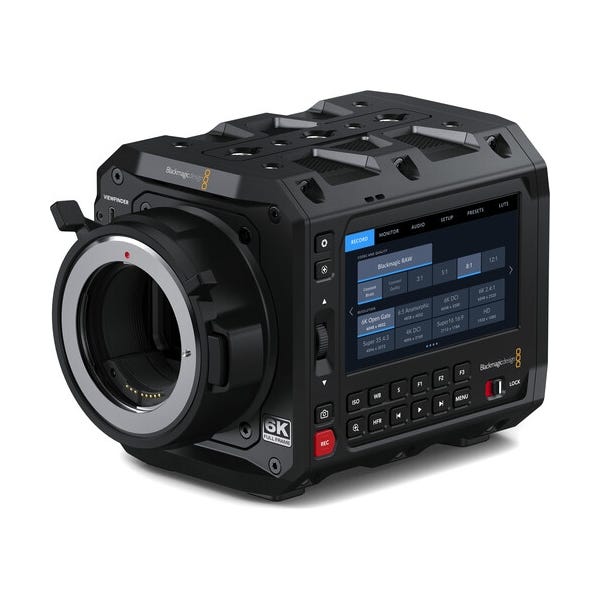

The Blackmagic Design PYXIS 6K EF is a full-frame box-style cinema camera built for high-end film, streaming, and broadcast production. Featuring a native 36 x 24mm sensor and a lockable Canon EF lens mount, it captures 6K open gate or 6:5 anamorphic video with rich color depth and a wide dynamic range. With built-in recording to CFexpress media, direct streaming via Ethernet or mobile data, and customizable mounting plates, the PYXIS EF model delivers versatile performance in a compact body optimized for professional use.

Large Full-Frame Sensor With Anamorphic and Open Gate Recording
The 24 x 36mm sensor offers a native resolution of 6048 x 4032—three times larger than Super35—allowing filmmakers to shoot uncropped with anamorphic lenses or achieve ultra-shallow depth of field. It supports full open gate 3:2 recording at up to 36 fps and anamorphic 6:5 formats up to 60 fps. This sensor design is ideal for DPs and creators who want cinematic image flexibility across full-frame and Super35 shooting styles.

Multiple Recording Formats and High Frame Rate Options
The PYXIS 6K EF provides broad resolution and frame rate support, including 6K open gate at 36 fps, 4.8K anamorphic at 24 fps, and windowed 1080p HD at up to 120 fps. The camera even supports still image capture at 24.6 MP and Super16-sized windowed modes for up to 100 fps. From full-frame cinema to fast action workflows, this camera adapts to nearly any production requirement.

Wide Dynamic Range With Dual-Native ISO for Low-Light Performance
With 13 stops of dynamic range, the PYXIS retains highlight and shadow detail in extreme lighting situations. Dual-native ISO (400 and 3200) extends up to 25,600, giving you clean performance in controlled studio setups and dim natural light alike. Exposure settings automatically adjust gain across ISO changes to preserve tonal accuracy. Combined with a built-in optical low-pass filter, footage retains sharpness while minimizing moiré.

Customizable Design With Mounting Plates and Accessory Support
Built-in mounting threads allow you to attach optional side plates to expand your rig. The included standard plate offers 1/4"-20 and 3/8"-16 threads, perfect for mounting monitors, arms, or microphones. A hook-and-loop SSD plate is included for external media or mobile devices, while a separately sold Rosette plate adds even more customization. This modular design makes the PYXIS easy to adapt for shoulder rigs, gimbals, or drones.

HDR Touchscreen Monitoring With Physical Controls
A built-in 4-inch HDR LCD touchscreen provides sharp 1080p monitoring with 1500 nits of brightness for visibility outdoors. The screen displays focus assist, histograms, frame guides, and real-time LUT previews. Physical controls on the body include a control dial, ISO and WB buttons, and three assignable function keys—all lockable to prevent accidental changes. This setup ensures fast, tactile control during fast-paced shoots.

Internal RAW and Proxy Recording With Streaming Support
Record in Blackmagic RAW and H.264 proxy formats simultaneously to CFexpress Type-B cards or external SSDs. You can stream directly from the camera using RTMP or SRT protocols via Ethernet or 4G/5G connection through the USB-C port. For internal distribution, connect to an ATEM Streaming Bridge. All files are compatible across Mac, Windows, and Linux systems and integrate with Blackmagic Cloud and DaVinci Resolve for a streamlined post-production workflow.

Comprehensive I/O for Audio, Video, and Data
The front of the PYXIS supports USB-C for attaching the URSA Cine EVF and a mini XLR input with phantom power for pro audio. The back includes a headphone jack, an additional mic input, USB-C for mobile data, a 12G-SDI output for monitoring, reference/timecode sync, and Ethernet for streaming or camera control. Power options include a 2-pin DC input or native Sony BP-U battery support. Bluetooth connectivity with the Blackmagic Camera Control app enables wireless operation up to 30 feet.
