Blackmagic Design BMD-VHUBSMAS12G120120 Videohub 120x120 12G Video Router

Route Any Video Signal Instantly With 120 x 12G-SDI Connections
The Blackmagic Videohub 120x120 12G is a professional-grade SDI video router that gives you complete control over massive video signal routing with zero latency. With 120 independent 12G-SDI inputs and 120 12G-SDI outputs, this unit handles SD, HD, Ultra HD, and full DCI 4K video formats simultaneously. It centralizes all your SDI signal paths into one intelligent hub—allowing any input to be mapped to any output, or multiple outputs, without delay. Whether you're working in post, broadcast, or live production, this is the core infrastructure tool for signal flexibility.

Supports Mixed Format Video Routing Across SD, HD, UHD 4K, and DCI 4K
Built for multi-format operations, this Videohub supports 8-bit and 10-bit 4:2:2 video and 12-bit 4:4:4 SDI signals up to DCI 4K at 60p. Multi-rate 12G-SDI ensures you can mix formats freely without needing converters. Route signals from a 1080i studio camera, a 2160p switcher, and a 2K film scanner all through the same device. For modern facilities needing SDI infrastructure that supports the entire range of production formats, this router offers true signal independence across 120 channels.

Clean Signal Transmission With Reclocking on Every SDI Input
Signal integrity is essential for broadcast-quality output, and the Videohub 120x120 12G includes reclocking on every SDI input. This feature regenerates the incoming signal, removing jitter and restoring clean data before it’s routed, even over long cable runs. Whether you're routing through patch panels or extending across a facility, you can rely on consistent, high-fidelity signal performance without degradation.

Integrated LCD and Front Panel Controls for Local Operation

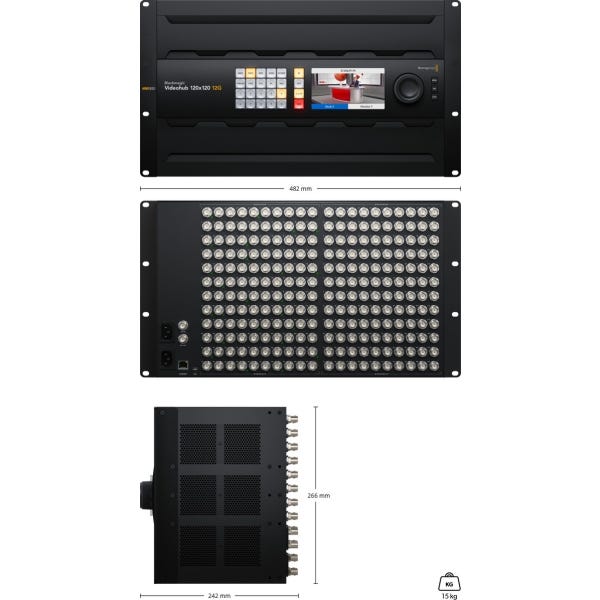

The front panel features a full-color 5-inch LCD screen that displays live SDI video from the selected input, so you can visually confirm routing decisions without needing an external monitor. A precision-machined metal spin knob with electronic clutch enables fast scrolling through sources, while shortcut, In, Out, Clear, and Take buttons streamline your routing process. This intuitive interface gives operators full routing control from the front panel.

Optional Hardware Panels for Facility-Wide Control
For larger studios or rack rooms, you can integrate optional control panels like the Videohub Master Control Pro and Videohub Smart Control Pro. The Master Control Pro includes an LCD screen and spin knob interface like the router itself, while the Smart Control Pro provides a button-only layout ideal for pre-programmed output switching. These hardware options expand the router’s usability across distributed workstations or control surfaces.

Cross-Platform Software Control With macOS, Windows, and iPad
The Videohub Software Control is included and supports macOS, Windows, and iPad for convenient touch-based router control. Customize each on-screen button with input/output assignments and icons for fast identification. Run the software on the same workstations used for editing or color grading, providing seamless routing access without dedicated hardware.

Setup Utility and SDK Integration for Automation Systems
Blackmagic includes a setup utility for configuration and firmware management, as well as an SDK for developers and engineers integrating router control into broadcast automation environments. With support for protocol customization and third-party control systems, this router easily fits into existing pipelines and custom workflows.
