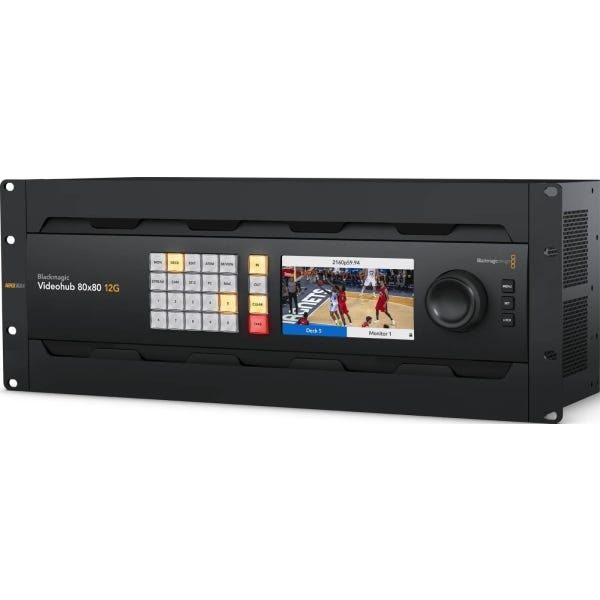

Blackmagic Design BMD-VHUBSMAS12G8080 Videohub 80x80 12G Video Router

Route SDI Video With Total Flexibility and Zero Latency
The Blackmagic Design Videohub 80x80 12G is a high-performance SDI routing switcher designed for large-scale post-production, broadcast, and live production facilities that require immediate and precise signal management. With 80 inputs and 80 outputs of 12G-SDI, this router can handle any combination of SD, HD, Ultra HD, and DCI 4K video—all in real time and with zero latency. It centralizes your signal flow by connecting multiple SDI sources and destinations in a single unit, allowing operators to re-route any signal instantly without plugging or unplugging cables.

Supports SD, HD, UHD 4K, and DCI 4K Signals Simultaneously
This router is built for versatility across all video formats. Each input and output supports multi-rate 12G-SDI, making it possible to route mixed formats such as 1080p, 2160p, and even DCI 4K60 through a single interface. Whether you’re working in 4:2:2 or 4:4:4 color spaces, the Videohub 80x80 12G provides full format compatibility. You can seamlessly integrate cameras, switchers, recorders, and monitors operating at different resolutions, making it an ideal choice for facilities transitioning to 4K or supporting hybrid SDI environments.

Advanced SDI Reclocking Ensures Clean, Jitter-Free Signals
Every 12G-SDI input features built-in reclocking to regenerate and clean the signal, minimizing jitter and signal degradation over long cable runs. This ensures high-quality, broadcast-ready output regardless of cable length or infrastructure complexity. Whether you’re managing hundreds of meters of cable across a facility or stacking signal chains in a control room, reclocking keeps your signal stable and crisp.

Software and Hardware Control Options for Streamlined Operation
The Videohub 80x80 12G includes support for Mac and Windows Videohub Software Control, allowing touchscreen-friendly router management and source labeling. Users can also preview video sources on the integrated 5-inch LCD screen, view routing information, and scroll through labeled sources directly on the front panel. For larger facilities or remote workflows, you can add optional Videohub Master Control Pro or Smart Control Pro panels for physical push-button and knob-based routing.

Supports Feature Film Workflows With Full 4:4:4 12-Bit SDI Up to DCI 4K30
In addition to broadcast and UHD production, this router is capable of routing high-fidelity 4:4:4 12-bit video for cinema-grade post workflows. Whether you're handling grading sessions, mastering DCPs, or routing raw camera signals to high-end monitors, the Videohub 80x80 12G preserves full image fidelity across its internal switching architecture.

Optimized for Redundancy, Scalability, and Live Production
With 80 independent inputs and outputs, you can route a single video feed to multiple destinations or map redundant feeds for live broadcast reliability. This makes the router perfect for feeding ATEM switchers, HyperDeck recorders, multiview processors, and video streamers simultaneously. It’s also ideal for signal distribution in OB trucks, network hubs, and facility-wide deployments.

No External SDI Monitor Required Thanks to Integrated Screen
The built-in LCD on the front panel of the Videohub eliminates the need for a separate preview monitor. Operators can view live SDI video directly on the unit and confirm routing decisions on the fly. The visual interface makes the router easy to operate even in high-pressure environments such as live control rooms or event centers.
