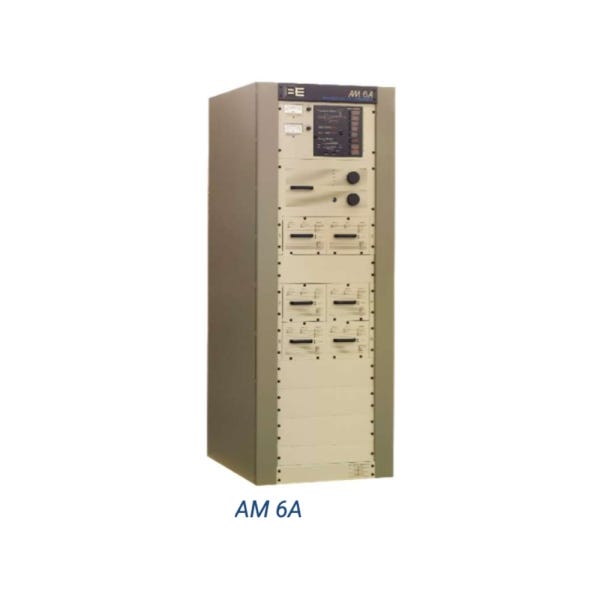

Broadcast Electronics AM-6A 6.6kW Mono AM Transmitter

Introducing the Broadcast Electronics AM-6A: Power and Precision in AM Transmission
Dive into the details of the Broadcast Electronics Model AM-6A, a high-capacity mono AM transmitter capable of delivering up to 6,600 watts of power. Designed for operation from 208/240 VAC and adaptable for both 50 and 60 Hz, three-phase systems, this model comes fully equipped to handle even the most demanding broadcast environments. Featuring a clamp and lug type output connector suitable for a 7/8 inch transmission line, the AM-6A is C-QUAM Stereo compatible, offering the option to specify the C-QUAM Stereo feature upon ordering.

Revolutionary Class E Power Modules for Maximum Efficiency
The AM-6A stands out with its use of patented high-efficiency Class E power modules paired with a high-efficiency switching power supply. This design significantly reduces power consumption while maintaining top performance, setting a new standard for energy efficiency in AM transmitters. Easy front panel access to plug-in power modules simplifies maintenance and enhances serviceability, ensuring that your transmitter is always running at peak efficiency.

Uncompromised Reliability with Advanced Redundancy Features
Broadcast Electronics’ “A” Series transmitters, including the AM-6A, are designed with multiple regulated power supplies to offer unmatched redundancy and reliability. This system ensures your broadcasts continue uninterrupted, protecting your station's revenue stream from unexpected downtimes. The AM-6A's star combiner network allows for continued operation at reduced power without the need for dummy modules, a testament to its sophisticated design.

Superior Audio Quality and Flexible Power Management
With the AM-6A, superior audio quality is a guarantee. It operates efficiently at five user-defined power levels, which means one transmitter can manage various broadcasting requirements throughout the day and night. This flexibility makes the AM-6A one of the most cost-efficient and adaptable transmitters in its class, capable of delivering exceptional audio quality at both high and lower power settings.

Built to Withstand and Excel
The AM-6A is not only powerful but also smartly engineered to withstand external disturbances. Its exclusive detection and foldback circuit minimizes carrier interruptions caused by nearby weather disturbances, ensuring that your broadcast quality remains pristine. Additionally, the built-in output matching network and compliance with IEC-215 safety specifications underscore its commitment to safety and operational excellence.
