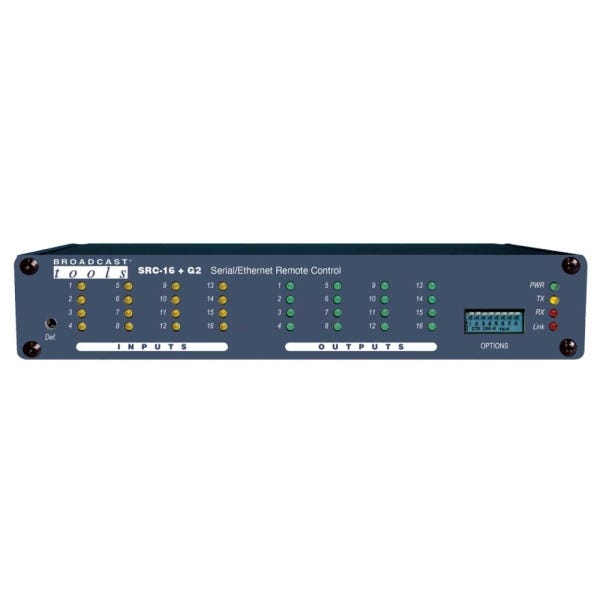

Broadcast Tools SRC-16 Plus G2 – Serial/Ethernet GPIO Interface

Why the Broadcast Tools SRC-16 + G2 is the Perfect Solution for Expanding and Controlling Your I/O System with Precision
The Broadcast Tools SRC-16 + G2 Serial/Ethernet GPIO Interface is an essential tool for integrating real-world input and output (I/O) into your computer system. This versatile unit allows you to control up to 16 relays and monitor 16 optically isolated inputs, all via a computer or network application. Whether you're using it in serial or Ethernet mode, the SRC-16 + G2 seamlessly communicates with your software, making it ideal for remote control, automation, and monitoring in various applications. Its flexible communication options ensure it can fit into virtually any setup.

Flexible Communication Options for Diverse Applications
The SRC-16 + G2 offers a range of communication modes, including RS-232 serial and TCP/UDP Ethernet, allowing it to easily integrate with your existing systems. Whether you’re controlling relays or monitoring inputs, this unit provides multiple ways to interact with your setup. You can use short ASCII or binary commands in computer mode, or define custom ASCII strings for more advanced control in Data mode. Its versatility makes it ideal for various applications, such as relay control, status monitoring, or as an I/O extension for remote systems.

Customizable Input and Output Control
With 16 optically isolated status/trigger inputs, the SRC-16 + G2 gives you the flexibility to work with both dry contact and powered inputs, ranging from +3.3V to +48V DC. This feature allows you to monitor a wide variety of inputs, from simple contact closures to more complex voltage-driven signals. On the output side, the unit features 16 SPST (form A) relay outputs that can be configured as normally open or normally closed, each capable of handling up to 30V and 1-amp. This customization gives you the control you need for nearly any scenario, whether you're monitoring a remote device or activating an alarm system.

Easy Expansion and Daisy-Chaining Capabilities
One of the standout features of the SRC-16 + G2 is its ability to be expanded to handle more I/O. By daisy-chaining up to three additional units, you can extend the system to 64 inputs and outputs via a single serial or Ethernet port. This makes it a great choice for applications that require large-scale I/O control and monitoring, such as industrial automation, remote broadcast setups, or networked control systems. With this expansion capability, the SRC-16 + G2 ensures that you can scale your system as your needs grow.

User-Friendly Setup and Integration
Integrating the SRC-16 + G2 into your system is simple thanks to the removable euro-block screw terminal connectors for both inputs and relay outputs. These connectors make wiring and servicing the unit straightforward, and the included mating plugs simplify installation. The unit also features LED indicators for all inputs and relay outputs, providing real-time status monitoring to ensure everything is functioning as expected. Whether you're using the unit for basic automation or more complex control scenarios, the setup process is smooth and hassle-free.

Durable and Reliable Performance
Built for professional environments, the SRC-16 + G2 is fully RFI-proofed, ensuring reliable performance even in electrically noisy environments. Its surge-protected internal power supply (9VDC @1A) provides stable power, and the included universal switching power adapter with a 120/240 IEC AC input ensures compatibility with global power systems. For those looking to mount the unit in a rack, up to two SRC-16 + G2 units can be mounted on the optional RA-1, 1-RU rack shelf. This makes it a great choice for permanent installations or environments where space efficiency is key.
