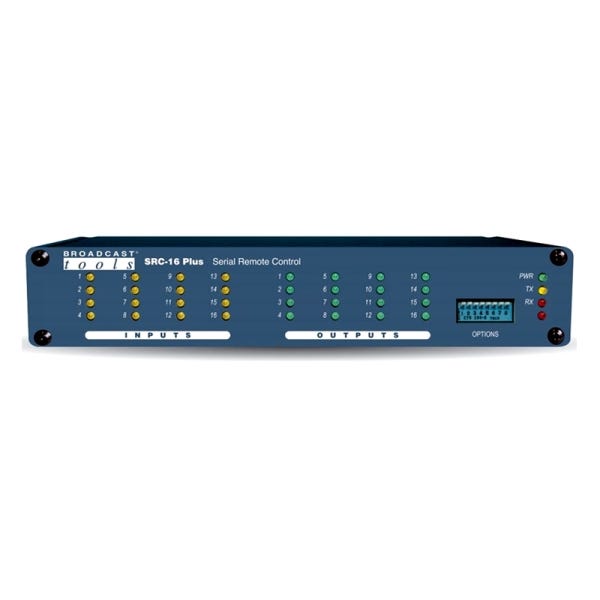

Broadcast Tools SRC-16 Plus Serial GPIO Interface

Innovative Control and Communication Solution
The SRC-16 Plus offers a dynamic way to integrate control systems with your PC software. It connects through an RS-232 or RS-422/485 serial port, enabling your software to receive notifications from 16 optically isolated inputs and control 16 SPDT, 1-amp relay outputs. This seamless integration makes it a valuable tool for various applications requiring precise control and monitoring.

Versatile Communication and Expansion Options
Communication with the SRC-16 Plus is highly versatile, supporting both ASCII and binary commands for efficient data transfer. The unit's capability to handle up to 64 ASCII strings per input and 16 user-defined strings per relay adds to its flexibility. Additionally, its expandability to 64 inputs x 64 outputs from a single serial port, along with optional external Ethernet and USB capabilities, makes it a scalable solution for complex control systems.

User-Friendly Interface and Operation Modes
The SRC-16 Plus is designed for ease of use. It features plug-in euroblock screw terminals for straightforward wire installation and removal. LED indicators display input and relay status, while additional LEDs show power, serial transmit, and receive data. The unit's ability to operate in a standalone master/slave mode, forming a "Relay extension cord," enhances its functionality in various operational setups.

Applications and Potential Uses
The SRC-16 Plus is ideal for applications that require detailed control and monitoring, such as in industrial automation, stage production, and custom software integration. Its ability to communicate effectively with PC software and control multiple relay outputs makes it a versatile choice for professionals in these fields.
