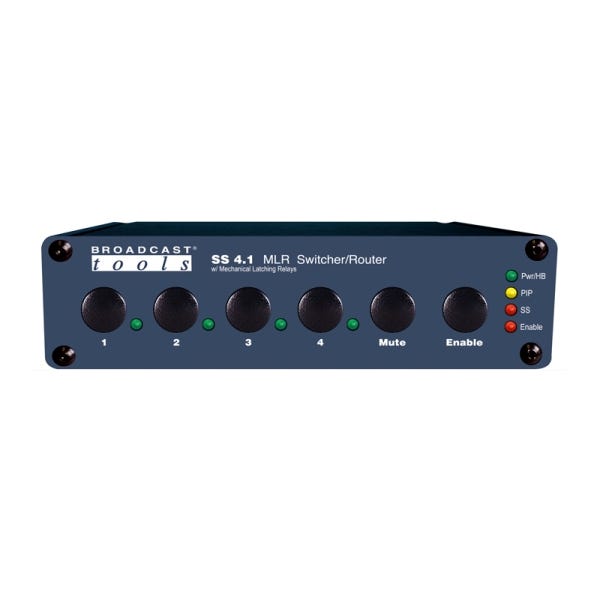

Broadcast Tools SS 4.1 MLR/TERM Terminal Block Switcher/Router

Sophisticated Four-Channel Audio Switching
The SS 4.1 MLR/Term is a cutting-edge audio switcher/router, boasting four channels, mechanical latching relays, and pluggable euro-block screw terminals. Designed for both analog and digital audio, this device is an ideal solution for various types of passive signal switching, enhancing the flexibility and efficiency of audio management.

Reliable and Versatile Signal Routing
Featuring mechanical latching gold contact relays, the SS 4.1 MLR/Term ensures dependable signal routing in any direction and maintains signal flow even after power loss. Its passive switching capability accommodates any input level and impedance, guaranteeing that outputs match the selected input in terms of levels, impedance, distortion, noise, and balancing, whether inputs are balanced or unbalanced.

User-Friendly Interface and Control
The SS 4.1 MLR/Term is designed with user convenience in mind. It offers front panel channel selection with LED indicators, an audio mute function, and a configurable enable switch for added safety. Remote control is possible via contact closures, TTL/CMOS logic levels, or RS-232 serial port, providing flexibility in various setups.

Applications and Potential Uses
This device is perfect for a wide range of applications, including automation source switching, studio selection, audio processing, exciter input selection, remote broadcast input selection, STL source selection, program on-hold/PA switching, EAS audio switching, ISDN/Phone hybrid feed selection, IFB selection, satellite audio channel switching, and console monitor inputs and outputs selection. Its versatility makes it a valuable asset in broadcast studios, live event production, and other professional audio environments.
