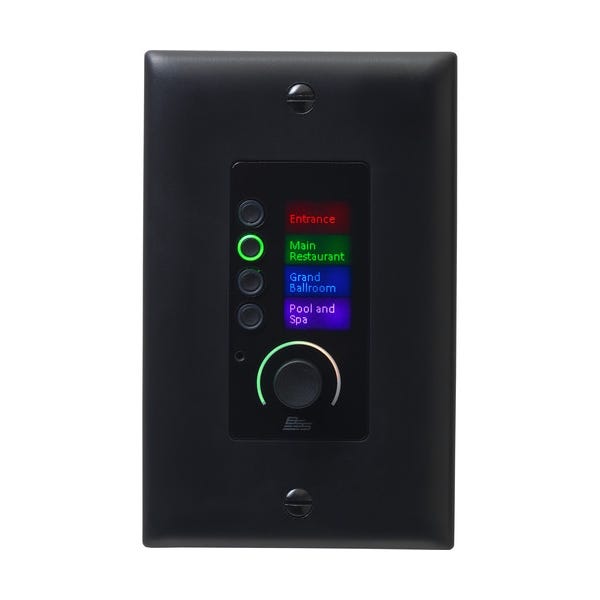

BSS EC-4BV-BLK-US Ethernet Controller w/ 4 Buttons and Volume (Black - US)

Ethernet Wall Controller for HiQnet Systems
The BSS Audio EC-4BV Ethernet Controller is a powerful and highly customizable wall-mounted control device designed for use with Harman HiQnet systems. This Ethernet-enabled controller provides system installers with an easy-to-use interface for controlling and monitoring various audio parameters within BSS Audio Soundweb London and other HiQnet devices, including Crown DCi series amplifiers. With a simple drag-and-drop configuration process using the HiQnet Audio Architect software, the EC-4BV ensures seamless integration into your audio system while offering intuitive, real-time control.

Flexible Control with Push/Rotary Encoder and Multicolored Feedback
The EC-4BV features a programmable push/rotary encoder, which allows for continuous parameter adjustments, such as volume control. The encoder can also be pressed to toggle between binary parameters, like muting, or to recall preset settings. A standout feature of the EC-4BV is its encoder ring, which provides real-time feedback, such as a bouncing audio meter during normal operation. When adjustments are made, the encoder ring displays the volume level or the binary parameter status in a corresponding color. The four multicolored buttons further enhance the user experience, providing visual feedback for selected sources, presets, and parameters.

Customizable Operation Modes for Versatile Control
The BSS Audio EC-4BV supports multiple modes of operation, giving users greater flexibility in how they control their audio systems. The 1 Zone Mode offers a simple interface with eight assignable buttons and a single continuous or toggle control. For more complex setups, the 4 Zone Mode allows for four banks of four assignable buttons, each with its own continuous or toggle control. The Hybrid Mode combines the simplicity of 1 Zone Mode with the expanded control of 4 Zone Mode, offering a customizable approach to system management. This flexibility is ideal for applications ranging from small installations to large, multi-zone environments.

Convenient Power and Control with PoE
The EC-4BV is powered via Power over Ethernet (PoE), which simplifies installation by eliminating the need for additional power cables. Power and control signals are transmitted over a single Cat 5e Ethernet cable, making it a more cost-effective and straightforward solution for integrators. Whether you're installing this controller in a commercial building, a conference room, or a home theater, the PoE functionality streamlines the setup process and reduces the complexity of wiring.

Energy-Efficient Sleep Function and Lockout Security
The EC-4BV comes with an energy-efficient sleep function that automatically dims or turns off the LEDs after a specified period of inactivity. This feature is particularly useful in environments where the controller is used in dimly lit spaces, such as boardrooms or home theaters, ensuring that the system remains unobtrusive when not in use. The controller can be "woken up" with any user interaction. Additionally, for added security, the EC-4BV can be remotely locked or unlocked via other control systems, and local access can be restricted with a four-digit PIN entry to prevent unauthorized use.

Easy Integration with HiQnet Devices
In addition to its compatibility with Soundweb London, the BSS Audio EC-4BV Ethernet Controller can control and monitor other HiQnet devices, including the Crown DriveCore Install Series amplifiers. This wide-ranging compatibility makes the EC-4BV an invaluable tool for audio professionals working with HiQnet-based systems. Whether you’re integrating multiple audio devices in a single network or managing a complex, multi-zone installation, the EC-4BV’s seamless integration into HiQnet ecosystems provides superior control and monitoring capabilities.
