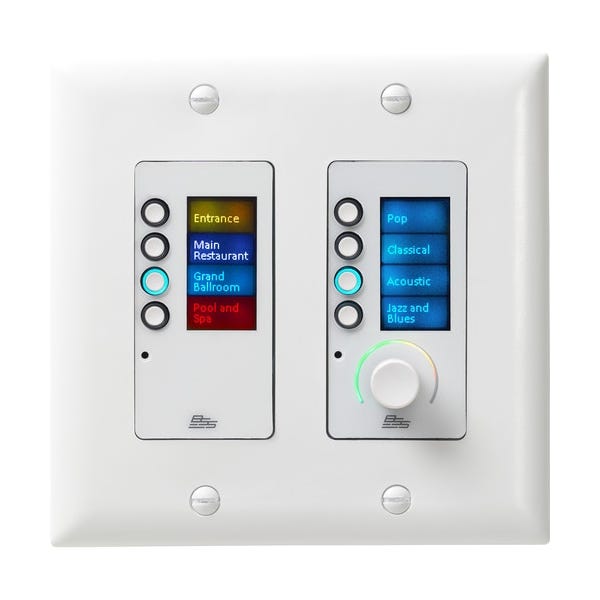

BSS EC-8BV-WHT-US Ethernet Controller with 8 Buttons and Volume Control (White, US Decora)

Comprehensive Ethernet Wall Controller for HiQnet Systems
The BSS Audio EC-8BV Ethernet Controller is a robust and flexible solution designed for managing and monitoring HiQnet-based audio systems. Compatible with BSS Audio Soundweb London and Crown DCi series amplifiers, this controller provides complete control over audio parameters, making it ideal for both residential and commercial installations. With its ability to integrate seamlessly with HiQnet devices, the EC-8BV offers the versatility needed for controlling a variety of audio setups, from simple single-zone systems to complex multi-zone configurations.

Intuitive Control with Push/Rotary Encoder and Multicolored Feedback
One of the standout features of the EC-8BV is its push/rotary encoder, which provides continuous parameter control (e.g., volume adjustment) and can also be pressed for binary control functions like muting or preset recall. In addition to the encoder, the EC-8BV includes an encoder ring that displays a bouncing audio meter for real-time monitoring. When adjustments are made to parameters, the encoder ring temporarily shows the volume level or binary parameter setting (e.g., mute/unmute). The 8 programmable buttons and two 64x128 pixel multicolored LCD screens allow for quick access to different audio parameters, with the backlit buttons offering visual feedback to indicate the current selection.

Multiple Operation Modes for Customizable Control
The EC-8BV offers five distinct operation modes, allowing for maximum flexibility in how you control your audio system. In the 1 Zone Mode, users can assign 8 buttons and a single continuous or toggle control. The 4 Zone Mode expands this functionality to four banks of four assignable buttons. The 8 Zone Mode provides complete control with 8 banks of continuous/toggle controls, while the 4 by 4 Zone Mode gives you even more flexibility with 16 continuous/toggle controls. Finally, the Hybrid Mode combines elements of the 4 Zone and 4 by 4 Zone Modes, offering a powerful tool for complex installations. These different modes provide the versatility to manage multiple audio zones with ease.

Simple Setup with HiQnet Audio Architect Software
Setting up the BSS Audio EC-8BV is made easy thanks to HiQnet Audio Architect, a user-friendly software that allows for drag-and-drop configuration of the controller. With this software, users can easily assign tasks to the encoder, encoder ring, buttons, and LCD screens without requiring any complex programming. The intuitive interface makes it possible to set up the EC-8BV in just a few simple steps, so you can quickly integrate the controller into your HiQnet audio system. Additionally, with Power over Ethernet (PoE) support, the EC-8BV simplifies installation by eliminating the need for additional power cables, reducing clutter, and saving time.

Energy-Saving Sleep Function and Secure Control
The EC-8BV includes a sleep function that automatically turns off all LEDs after a period of inactivity, making it ideal for dimly lit environments. This energy-saving feature helps avoid unnecessary distractions, especially in settings like conference rooms or home theaters. When the controller is needed again, it can easily be “woken up” with any user interaction. The EC-8BV also comes with a lockout function, allowing the controller to be locked remotely or locally via a 4-digit PIN. This added layer of security ensures that only authorized users can make adjustments to the system, preventing unauthorized tampering in both residential and commercial installations.

Versatile Feedback and Multicolored LED Indicators
The EC-8BV provides clear visual feedback through its 8 multicolored buttons and encoder ring. Each button and corresponding screen position is color-coded, with 8 unique colors available (red, yellow, green, cyan, blue, magenta, white, and amber) to represent different zones and their associated parameters. The intensity of the LEDs can be adjusted to suit the surrounding ambient light, making the controller adaptable to various lighting conditions. This feature allows users to easily identify the current settings and navigate between audio zones, enhancing the overall user experience.
