Chauvet Pro LOGICPOEX Logic POE X Power / Data Adapter

Power and Data Conversion for Logic Drive 2X Fixtures

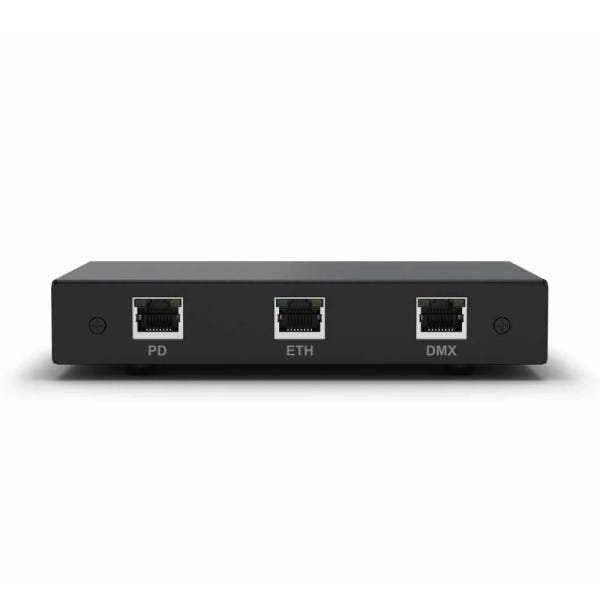

The Chauvet Pro LOGIC POE-X is a compact, in-line power and data adapter specifically engineered to convert output from the Logic Drive 2X into usable power and signal for compatible fixtures. Designed to support installations using up to 90 watts (with 75 watts available to fixtures), this adapter allows integrators to extend power and control from a central Logic Drive 2X hub using standard shielded CAT6/A Ethernet cabling. It streamlines connectivity in permanent indoor lighting systems, making it a vital piece of infrastructure for Logic-based networks.

Efficient Power Distribution with Built-In Signal Pass-Through
The Logic POE-X ensures up to 75 watts of usable power can be delivered to fixtures over a 100-meter Ethernet cable using 23 AWG solid copper wire. In addition to its power output, it features a through-port for data pass-through, allowing DMX or RDM signal from the Logic Drive 2X to continue downstream to additional fixtures. However, any fixture connected through this secondary port that requires power must be supported by an external POE injector.

Supports Long Cable Runs for Complex Installations
Designed for flexibility in architectural or venue lighting systems, the LOGIC POE-X allows for a total maximum cable run of up to 475 feet from the Logic Drive 2X to the last fixture in the chain. Specific maximums include 328 feet from Drive to POE-X, 50 feet from POE-X to the first fixture, and 150 feet from first to last fixture. This extended range simplifies layouts for large-scale permanent installs where centralized control and distributed output are required.

Durable, Low-Profile Design for Indoor Install Use
Constructed from SPCC45 steel and finished in white, the Logic POE-X features teardrop mounting holes for straightforward installation in a variety of orientations. Its IP20 rating and convection cooling make it ideal for dry, climate-controlled spaces like auditoriums, retail spaces, and broadcast facilities. The compact housing supports discreet mounting while maintaining full performance under demanding operational conditions.

Compliant with Modern Power and Safety Standards
The POE-X uses a POE++ power input (IEEE 802.3bt, Type 4) and complies with UL, CSA, CE, MET, FCC, and RoHS certifications for safe use in permanent installations. With a thermal tolerance of -4°F to 113°F and convection-cooled design, it operates reliably without active fans. The included 36-month manufacturer’s limited warranty adds peace of mind for integrators and facility managers.

Optimized for Use with Logic Drive 2X and Compatible Fixtures
Engineered exclusively for use with the Logic Drive 2X, the POE-X maintains system integrity and simplifies integration into Chauvet’s Logic control ecosystem. Setup options include fixture addressing via RDM, onboard display, or web interface through Logic Drive 2X. Supported protocols and infrastructure ensure seamless compatibility with other devices in the GeNetix and Logic product lines.
