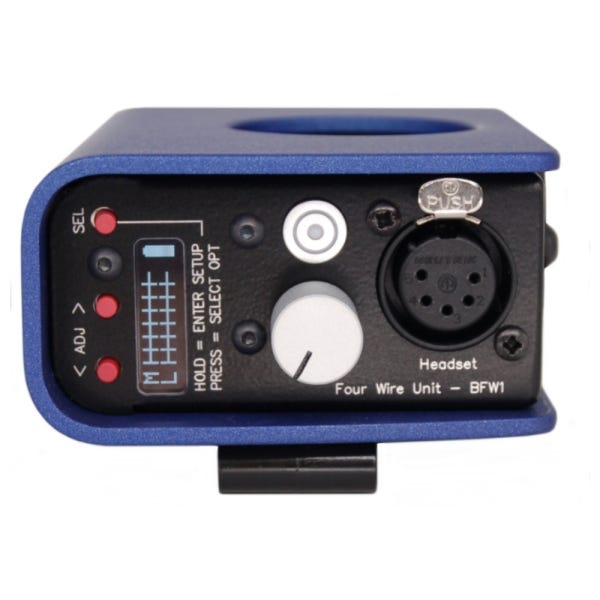

CTP Systems B-FW1 Analog Four Wire Beltpack

Experience Seamless Communication
Step into the world of broadcast excellence with the B-FW1, a compact and battery-powered unit designed for controlled communication between a local operator and a remote endpoint through an analog four-wire connection.

Versatile Audio I/O for Diverse Needs
Equipped with standard 3-pin XLR connectors, the B-FW1 ensures optimal audio input and output for a wide range of applications. The electronically balanced output can be configured for unbalanced output, offering flexibility to meet your specific requirements.

Efficient Power Options and Compatibility
The B-FW1 operates on a PP3/6F22-size 9V battery (alkaline recommended) or an external power supply of 12VDC at 100mA. The unit's DC input is via a 2.1mm 'barrel' connector, compatible with standard plugs and Cliff twist-locking parts for added security.

Intuitive OLED Display for Real-Time Monitoring
With an OLED display, the B-FW1 provides real-time monitoring of battery status and two pseudo-PPM characteristic bar graph level meters. The L(ine) meter shows the incoming level, while the M(ic) meter displays the local microphone signal, enhancing confidence during operation.

Seamless Four-Wire Communication
The B-FW1 ensures clear communication with incoming signals transmitted to local headset earpieces, controlled by the front panel volume. The local microphone signal activates when the front panel Talk button is active, with configurable options for momentary, latching, or smart operation.

Programmable Features for Tailored Performance
The B-FW1 offers programmable features, including microphone amplifier gain, phantom power, high-pass filter, mic automatic gain control, line input gain, headphone limiter, sidetone, and loudspeaker options.

Enhance Your Broadcast Setup with B-FW1 Beltpack
Whether it's pitchside reporting or professional presentations, the B-FW1 is the ideal analog single-channel four-wire beltpack with a built-in speaker. Enjoy seamless communication and customization options for an unparalleled broadcast experience.
