CTP Systems DC2012 DC2012 Dual + Guest Commentary Box

Next-Generation Commentary with the DC2012

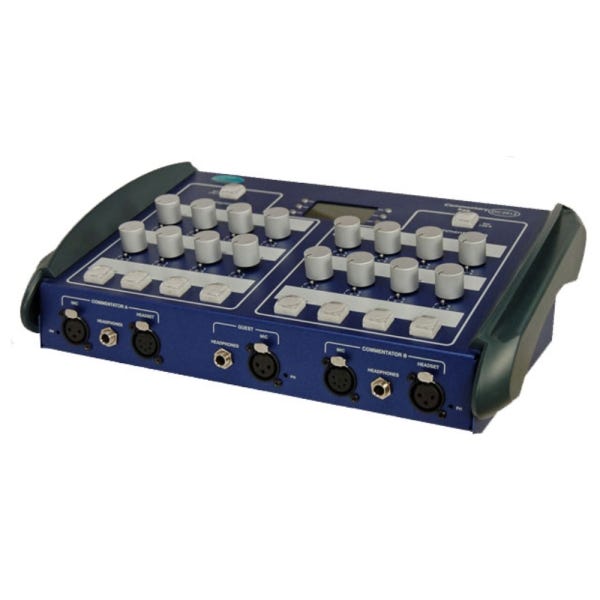

The DC2012 marks a significant advancement from the DC99-II commentary box, setting a new standard in the industry. Designed meticulously from the ground up, this unit boasts a robust two-piece steel chassis, complete with custom-manufactured protective handles. Its primary focus is on delivering superior audio quality, making it a top choice for professional broadcasting.

Intuitive Interface and Enhanced Security
Featuring a paper-white liquid crystal display, the DC2012 is equipped with six control push buttons for easy adjustment of various settings. The intuitive interface is complemented by a lock feature to prevent unauthorized adjustments, ensuring operational integrity during live broadcasts.

Superior Microphone Amplifiers for Crystal-Clear Audio
The DC2012 includes three top-quality microphone amplifiers, each offering exceptionally low distortion and a natural sound. The gain of each amplifier is adjustable in 1dB steps, providing precise control over audio output. Additionally, each microphone amplifier has an individual XLR electronically balanced output, with transformer output available as an option.

Versatile Talkback and Monitoring Capabilities
With four Lazy talkback outputs and ten monitoring inputs, the DC2012 offers unparalleled flexibility in commentary. The Lazy outputs allow commentators to redirect their microphone audio silently, ensuring smooth transitions during live events. Each commentator has access to a range of monitoring inputs, allowing for tailored audio feeds depending on the production requirements.

Customizable Headphone Monitoring
Each commentator can monitor six common audio inputs, with additional feeds for sidetone, other commentators, and guests. The headphone monitoring inputs are transformer isolated as standard, preventing earth loop problems. The headphone amplifiers are capable of delivering 500mW of audio with low distortion, ensuring clear and powerful sound.

Additional Features for Comprehensive Control
The rear panel MIL26 connector provides additional audio inputs and outputs, streamlining connections for less complex productions. The built-in tone generator is perfect for setup and identification of audio channels, with different tones for each output.

Applications in Professional Broadcasting
The DC2012 is ideal for sports commentary, live event broadcasting, and news coverage. Its advanced features and superior audio quality make it a must-have for any professional broadcast environment where clear and reliable commentary is essential.
