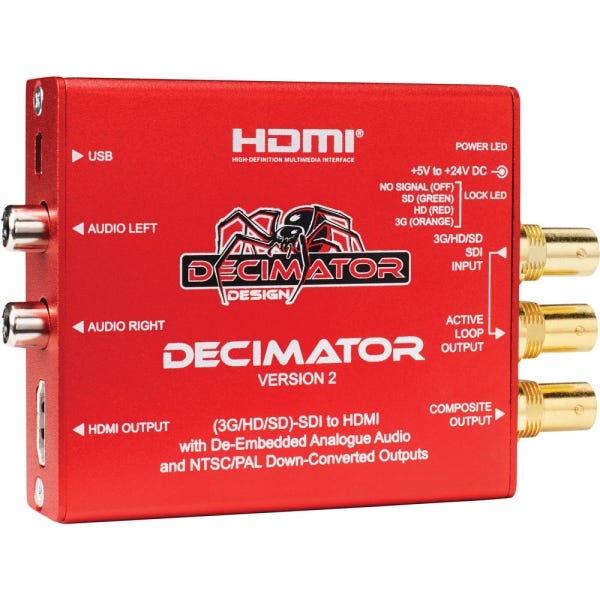

Decimator Design DECIMATOR 2 3G/HD/SD-SDI to HDM Converter

Compact SDI to HDMI Converter with Professional Grade Tools
The Decimator Design DECIMATOR 2 offers more than basic format conversion. Designed for both field and studio use, this versatile device converts 3G/HD/SD-SDI signals to HDMI and composite video, while providing essential features like downscaling, audio de-embedding, and overlay options. With auto signal detection and real-time scaling, it ensures smooth integration across workflows where multiple video formats need to be monitored or repurposed without frame delay.

Built-In Downscaling and Aspect Ratio Conversion for NTSC/PAL
The composite output is selectable between NTSC and PAL, making it ideal for global deployments. When receiving HD input, the DECIMATOR 2 allows selectable downconversion for legacy displays or distribution systems using 16:9 anamorphic, 4:3 letterbox, or 4:3 center extraction. Closed captions (EIA-708/608) are also passed through to the composite output, a critical feature for broadcast and compliance workflows.

Detailed HDMI Output with Audio and Video Overlays
On the HDMI output, the DECIMATOR 2 provides adjustable on-screen markers including safe action, safe title, and center cross indicators. These markers can be color-coded and repositioned for different production standards. In addition, you get customizable text overlays and real-time input status. The unit can display 16 channels of audio metering directly on HDMI using selectable scales such as VU, BBC, DIN, and more—an essential visual tool for monitoring embedded audio.

Embedded Audio De-Embedding and Analog Output Options
The SDI audio stream can be de-embedded into two channels of analog audio, providing quick access to reference monitoring. DIP switch controls on the device allow for selection of the stereo pair and adjustments to output configurations without needing a computer. This flexibility makes the DECIMATOR 2 suitable for editors, OB truck operators, or engineers needing reliable, stand-alone tools.

Reliable Hardware Integration and Locking Power Connector
Hardware installation is simple thanks to the included mounting bracket and compact design. A locking DC power connector ensures stable operation during field use, preventing accidental power loss. DIP switch access and USB connectivity for firmware updates round out the hardware interface, making the DECIMATOR 2 both durable and flexible in professional environments.

Versatile Monitoring in a Portable Form Factor
Whether you're converting SDI feeds for HDMI displays, sending composite signals to analog infrastructure, or embedding monitoring tools into your workflow, the DECIMATOR 2 provides a wide feature set in a compact chassis. Its ability to operate independently, without a computer or external controller, makes it a smart utility device for any video professional.
