EAW CIS400 Ceiling-Mounted Loudspeaker

Superior Acoustic Performance in Commercial Ceiling Speakers

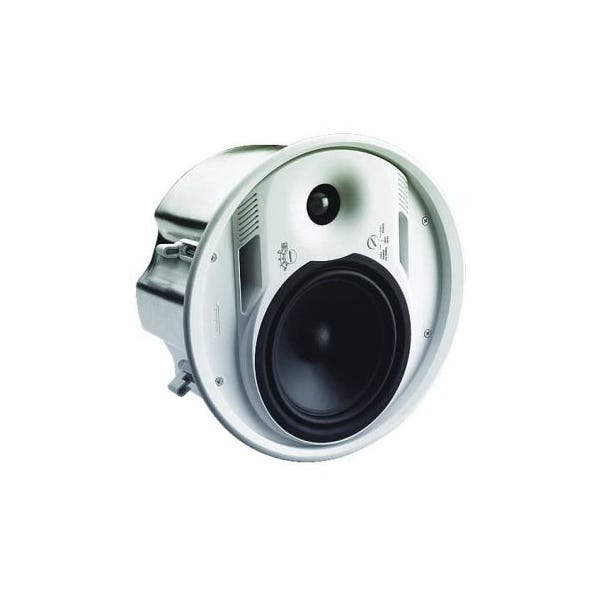

The EAW CIS400 CIS400 White is a top-tier two-way bass-reflex flush-mount loudspeaker assembly designed for fixed installations in standard ceiling plenum spaces. Leveraging a high-frequency (HF) waveguide design inspired by top studio monitors, the CIS400 offers exceptional dispersion and pattern control, outperforming conventional coaxial designs. This innovative waveguide seamlessly integrates the HF driver with a 6.5-inch low-frequency (LF) driver, ensuring a smooth frequency response and a flawless crossover transition. This combination delivers unparalleled acoustic performance, making it an excellent choice for commercial settings.

Complete and Ready for Installation
The CIS400 is shipped fully assembled, ready for immediate installation. It includes a sealed zinc-coated steel backcan and cam-style installation clamps, simplifying the setup process. The metal enclosure features a recessed Euroblock input connector with a detachable mating plug, hidden behind a hinged metal cover plate for a clean, professional appearance. A welded tab is included for seismic restraint, ensuring safety and stability. Additionally, two steel T-Bar support channels and a steel split C-ring are provided to facilitate installation on standard tile ceilings and to distribute clamping pressure evenly.

Versatile Power and Impedance Options
This speaker assembly is equipped with an integral 70/100V line transformer rated for up to 30 watts, with adjustable power settings via a recessed rotary switch on the front bezel. You can select from 30, 15, 7.5, and 3.7 watt taps to suit various installation requirements. Another recessed rotary switch allows engagement of a 16-Ohm tap for low-impedance amplifiers or a 150 Hz high-pass filter, offering flexibility for different audio setups and applications.

Durable and Protective Design
To protect the internal components during installation, the CIS400 is shipped with a detachable plastic cover fitted over the transducers. This cover also doubles as a paint shield, enabling easy spray painting to match any interior décor. Once the tap selector and high-pass switches are set, a powder-coated perforated steel grille can be quickly installed, providing a sleek and durable finish.

Certified and Reliable
The EAW CIS400 meets UL 1480 and UL 2043 regulations for signaling devices and plenum applications, ensuring compliance with safety standards. Each unit is fully tested at the time of manufacture and comes with a five-year warranty against defects in materials and workmanship. This speaker is designed to withstand the rigors of commercial use, providing reliable performance over the long term.

High-Efficiency Components
The speaker features a 6.5-inch cast steel basket with a high-efficiency carbon fiber woofer and a 110º x 110º constant directivity horn. The 1-inch Neodymium dome tweeter is cooled with Ferrofluid®, enhancing its performance and longevity. A built-in low-inductance passive crossover with high-frequency dynamic protection ensures balanced and dynamic sound reproduction. The lightweight, UV/weather-resistant, high-density polystyrene construction further enhances its durability and suitability for various environments.

Integrated Mounting System
The CIS400 comes with an integrated mounting system and hardware, making installation straightforward and secure. It is UL/cUL/CE listed, attesting to its quality and safety standards. This comprehensive speaker assembly is an ideal solution for any commercial installation requiring high-quality audio performance and reliable operation.
