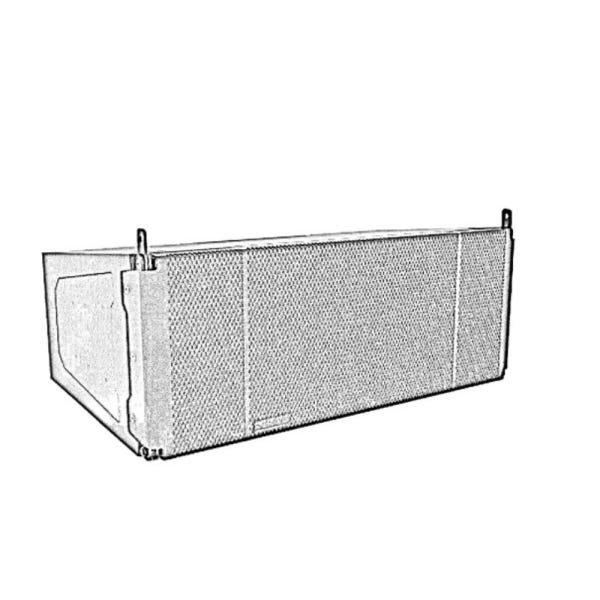

EAW KF810P|80-WHITE 3-Way Line Array Speaker

High-Performance 3-Way Line Array Speaker for Fixed Installations
The EAW KF810P 110-WHITE is a passive 3-way line array loudspeaker built for professional permanent installations that demand full-range sound, clean visuals, and precise pattern control. Offering 110° horizontal dispersion and finished in white, this model delivers broad coverage with a low-visibility appearance that fits into architecturally sensitive environments. Designed as part of the renowned KF Series, the KF810P 110-WHITE combines high output, tight beamwidth control, and integrated rigging for venues such as auditoriums, houses of worship, and performance halls.

Wide 110° Horizontal Coverage for Expansive Audience Areas
This model’s 110° horizontal dispersion provides even, uninterrupted coverage across wide seating areas, making it ideal for venues with shallow but broad audience zones. Unlike narrower dispersion arrays that require more boxes for the same coverage, this wide pattern reduces array size and simplifies rigging. The vertical dispersion is tightly controlled for long-throw consistency, allowing designers to target the listening area and minimize reflections off ceilings or floors.

Full-Range Output Using Integrated 3-Way Acoustic Design
At its core, the KF810P 110-WHITE features dual high-power 10-inch low-frequency drivers with 3-inch voice coils, four 5-inch midrange drivers, and a pair of 1.4-inch exit, 3-inch coil compression drivers. These drivers are integrated into a single large-format horn that spans nearly the full front face of the cabinet. This arrangement supports coherent wavefront summation and extends accurate pattern control down to 250 Hz. The result is 145 dB maximum SPL and consistent tonality across all frequencies—critical for intelligibility in acoustically challenging spaces.

Architectural White Finish with Concealed Rigging and Wiring
With its smooth white enclosure and hidden wiring paths, the KF810P 110-WHITE is purpose-built for installation environments where visual impact must be minimal. The loudspeaker’s 3-point rigging system is fully integrated and designed to remain out of sight, preserving clean lines and allowing for aesthetic consistency throughout the venue. Whether mounted in theaters, houses of worship, or conference halls, the speaker visually blends into light-colored ceilings and structures.

Tailored for Permanent Installation with Flexible Configuration
The KF810P is optimized for installed sound, with specific design choices made to simplify permanent rigging and long-term serviceability. It supports bi-amplified operation, allowing for separate LF/MF/HF control and tuning with external DSP processing. When deployed as part of a line array, the system can be configured using a variety of flyware options to achieve precise vertical aiming with angle increments up to 10°. Whether installed as a full-range array or as part of a distributed system, the KF810P adapts to complex venue layouts.

Part of the Proven KF Series Line Array Family
This speaker builds on EAW’s long legacy of high-performance installation arrays. Its combination of output, directivity, and voicing consistency makes it a reliable tool for integrators handling demanding installs. Matching dispersion variants (80° or 110°) and finish options (black or white) allow designers to mix and match enclosures while maintaining consistent audio characteristics across a system.
