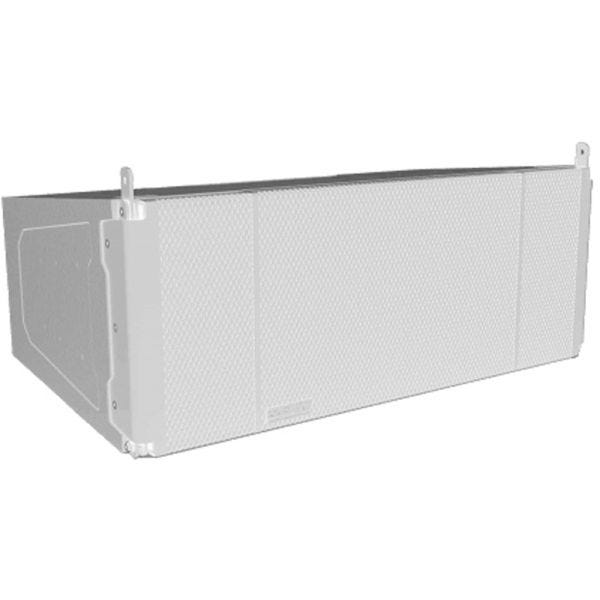

EAW KF810P|80-WP 10'' Passive 3-Way Line Array Loudspeaker (White)

High-Performance 3-Way Line Array Loudspeaker for Fixed Installations
The EAW KF810P-80WP WHITE is a weather-protected, passive 3-way line array loudspeaker designed for precision sound reinforcement in permanent installations. Featuring a sleek white finish and IP56-rated protection, it is built to withstand outdoor environments while delivering professional-grade audio performance indoors or out. This system combines compact size with powerful output, making it a strong fit for stadiums, performing arts centers, houses of worship, and other high-demand venues that require full-range, high-SPL audio with consistent coverage.

Engineered for Full-Range Audio Reproduction with Maximum Output
At the core of the KF810P-80WP is a dual 10-inch low-frequency driver setup with 3-inch voice coils, delivering impactful bass and low-end clarity. The midrange is handled by four 5-inch transducers, while the high-frequency section uses two 1.4-inch exit compression drivers, each with a 3-inch voice coil. This driver array supports a bi-amped configuration that separates low, mid, and high-frequency amplification for enhanced clarity and headroom. The system offers a frequency response of 50 Hz to 20 kHz and a max SPL of 145 dB, making it suitable for large-scale venues where sound pressure and fidelity are critical.

Advanced Acoustic Technologies Ensure Coherent Coverage
EAW’s proprietary Phase Aligned LF configuration optimizes driver spacing to extend low-frequency pattern control without requiring oversized horns. The high-frequency section uses an Isophasic Waveguide to produce a uniform wavefront across the listening field. The Concentric Summation Array (CSA) design combines the mid- and high-frequency elements into a shared horn for seamless integration and distortion-free output. These technologies work together to ensure smooth phase response, broad bandwidth, and accurate imaging across the entire coverage area.

Consistent Coverage with Defined 80° x 10° Beamwidth
Designed with a nominal 80° horizontal by 10° vertical coverage angle, the KF810P-80WP provides tightly controlled directivity, ensuring the sound reaches the intended audience areas without excessive spill. This makes it particularly effective in venues with tiered seating, long throws, or challenging acoustics. Whether used in a single hang or larger array, the speaker’s dispersion pattern maintains consistency, reducing the need for additional fills or tuning corrections.

Designed for Professional Installation and Rigging Flexibility
This model features a 3-point integrated rigging system compatible with KF810P|FLYBAR and ADAPTERBAR flyware, allowing for fast, secure suspension in vertical arrays. Installers can adjust angle increments between 0.0° and 10.0° for tailored sound coverage in any environment. With Phoenix-style input connectors and rugged construction, this loudspeaker is well-suited for permanent installations requiring long-term reliability, including outdoor venues exposed to the elements.

Weather-Resistant and Aesthetically Versatile for Any Venue
With an IP56 rating, the KF810P-80WP WHITE is engineered to handle moisture, dust, and environmental wear, making it ideal for both outdoor arenas and indoor spaces where long-term durability is essential. The white finish helps it blend into architectural environments, especially in venues where visual impact matters. This combination of performance and presentation makes it a versatile choice for architects, AV consultants, and integrators designing world-class audio systems.

Optimized Performance Through EAW Focusing DSP
The loudspeaker is tuned using EAW’s Focusing DSP technology, which applies advanced processing for phase alignment, equalization, and system optimization. This ensures that the speaker’s acoustic output matches its design intent, regardless of venue-specific challenges. With the right processing and amplification, the KF810P-80WP WHITE delivers efficient, consistent, and high-fidelity sound reinforcement across all applications.
