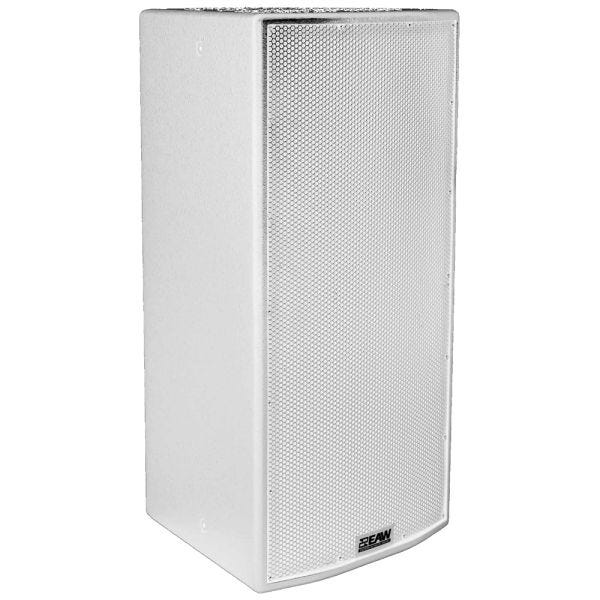

EAW MK2396i-WP 2-Way IP56-Rated Portable Loudspeaker

Compact loudspeaker with full-range output for any venue
The EAW MK2396i-WP WHITE is a high-output 600W passive 2-way loudspeaker designed to deliver exceptional sound quality and consistent coverage across a range of environments. With a 12-inch low-frequency driver and a 3-inch voice coil compression driver, this speaker is purpose-built for venues that require wide dispersion, deep bass, and long-term reliability in both indoor and outdoor applications. Its IP56-rated enclosure protects against dust and water, making it ideal for use in houses of worship, conference centers, stadiums, nightclubs, and outdoor performance spaces.

Precision sound with high-efficiency coverage
At the core of the MK2396i-WP WHITE is a carefully engineered coaxial system combining a 12-inch LF driver and a 1.4-inch exit HF compression driver. This configuration provides an operating frequency range from 65 Hz to 20 kHz, ensuring full-range performance with clear articulation at both ends of the spectrum. The 90° x 60° nominal beamwidth maintains consistent horizontal and vertical coverage, allowing for even sound distribution across the entire listening area. Whether installed as a primary loudspeaker or used as part of a distributed audio setup, this unit performs reliably in acoustically demanding spaces.

Power handling and SPL performance for professional environments
With an axial sensitivity of 94 dB and calculated peak SPL of 138 dB, the MK2396i-WP WHITE delivers enough output to handle large-scale applications without distortion. The beamwidth-matching crossover and filter design ensures a seamless transition between the LF and HF components, preventing power response gaps that can degrade overall clarity. Whether in single-amp or bi-amp mode, the speaker maintains consistent fidelity and definition, even at high sound pressure levels. Average and peak output limits for LF/HF are 122 dB and 128 dB respectively.

Built for flexibility with robust installation options
This model supports both single-amp and bi-amp configurations, allowing system designers to tailor performance for a specific room or event setup. The MK2396i-WP WHITE includes external signal processing support, with a high-pass filter (60 Hz, 12 dB/octave Butterworth) and DSP-based two-way filtering to enhance integration into complex audio systems. Whether used for portable sound reinforcement or as part of a permanent installation, this speaker adapts easily to meet the needs of professional AV contractors and engineers.

Durable construction for indoor and outdoor use
With its weather-resistant enclosure made from exterior-grade Baltic birch plywood, the MK2396i-WP WHITE is engineered to last. The enclosure is finished in a textured white weatherproof coating, while a powder-coated perforated steel grille protects internal components without compromising acoustic performance. The IP56 rating means this loudspeaker can endure tough outdoor conditions, including exposure to rain and dust, making it suitable for touring applications, outdoor amphitheaters, and open-air events.

System integration with other EAW components
Sharing its height with other MK2300i and MK5300i series enclosures, this model integrates easily with other EAW full-range loudspeakers and SBK subwoofers for cohesive arrays and multi-zone systems. Compatible with EAW's accessory flybars and rigging systems, the MK2396i-WP WHITE simplifies complex installations, offering both visual and functional consistency across sound reinforcement setups in professional venues.
