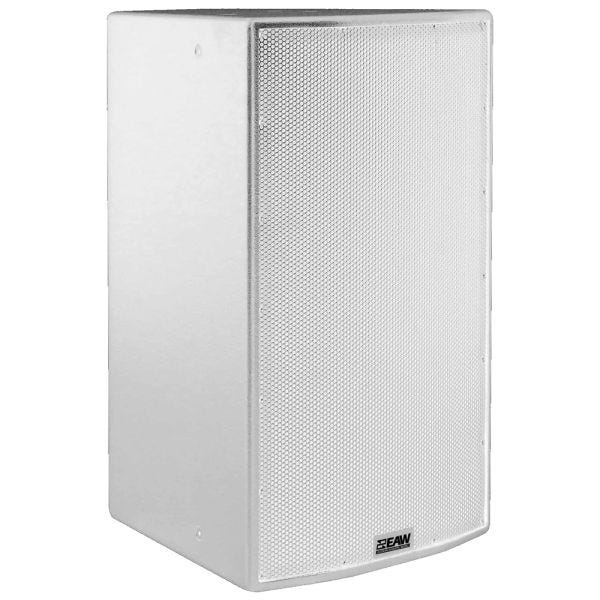

EAW MK5326i-WP Passive 2-Way Loudspeaker

High-Output Passive Loudspeaker for Professional Installations
The EAW MK5326i-WP WHITE is a 15-inch, 800W passive 2-way loudspeaker built for demanding audio installations that require power, clarity, and weather resistance. Designed for both small and large venues, this trapezoidal loudspeaker performs exceptionally well as a main PA system in churches, corporate meeting rooms, theaters, and hotel ballrooms. It also serves as a reliable distributed or fill speaker for larger environments including stadiums, arenas, themed entertainment complexes, and nightclubs. Finished in white and built to IP56 standards, it offers both aesthetic flexibility and outdoor readiness.

Optimized Driver Design for High-Fidelity Output
At the core of the MK5326i-WP WHITE is a high-performance 15-inch LF driver paired with a 3-inch voice coil, 1.4-inch exit compression driver, delivering clean full-range audio. The speaker’s horn is designed for a 120° x 60° coverage pattern, offering exceptionally wide horizontal dispersion and consistent directivity. This ensures every listener in the coverage area receives balanced, articulate sound—making it especially effective in spaces with wide seating layouts or challenging acoustics. The full-range clarity and output far exceed expectations for a speaker of this size and class.

Flexible System Integration with Single-Amp and Bi-Amp Modes
For installation and system flexibility, the MK5326i-WP WHITE supports both single-amp and bi-amp operating modes. When paired with an external processor, users can take full advantage of EAW’s beamwidth-matching crossover and filter design. This technology eliminates response discontinuities in the crossover region that typically affect conventional 2-way loudspeakers. Whether running in passive mode or with DSP-enhanced bi-amp configuration, the MK5326i-WP delivers consistent power response and tonal accuracy across the entire frequency spectrum.

Consistent Voicing for Mixed Horn Pattern Arrays
All MK5300i Series models are voiced to sound similar, allowing different horn patterns to be deployed throughout a venue while maintaining consistent sonic quality. This is especially important for integrators working on large distributed systems or multi-zone environments where a variety of coverage needs exist. The MK5326i-WP WHITE shares enclosure height with the MK2300i Series and SBK Series subwoofers, making it easy to build aesthetically uniform, performance-matched arrays using EAW’s flybar accessories.

Built for Weather Resistance and Long-Term Use
Housed in a durable, exterior-grade Baltic birch plywood cabinet and finished in wear-resistant white textured paint, the MK5326i-WP WHITE is built for life in the field. A powder-coated perforated steel grille protects internal components while maintaining optimal acoustic transparency. Its IP56 rating confirms protection against dust and powerful water jets, making this model a trusted choice for outdoor or exposed environments without sacrificing fidelity.

Engineered for Efficient High-Output Sound
The MK5326i-WP WHITE offers an operating range from 48 Hz to 18 kHz and delivers a maximum SPL of 140 dB. Its axial sensitivity of 98 dB (LF/HF) ensures it efficiently converts power into clean, distortion-free output. Calculated peak output levels reach up to 134 dB, providing the headroom needed for high-impact live sound in performance-critical environments. The wide beamwidth and high efficiency allow the loudspeaker to maintain clarity and coverage even at elevated volume levels.
