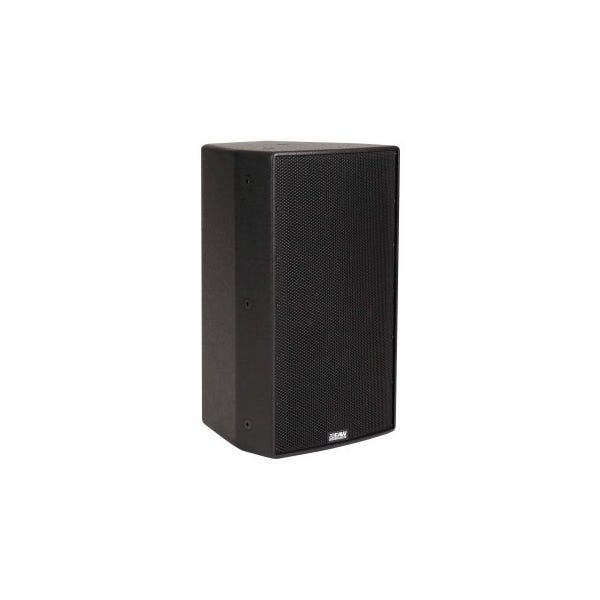

EAW MK8126i Black Passive 2-Way Full-Range Loudspeaker

Compact 2-Way Loudspeaker with Superior Performance
The EAW MK8126i Black Passive 2-Way Full-Range Loudspeaker redefines installation audio with its exceptional performance, solving the common issues found in compact two-way systems. Despite its compact size, this loudspeaker delivers superior sound quality that outperforms many larger models. Designed for professional installations, it’s perfect for venues that demand clear, consistent audio across the entire listening area.

Advanced Horn Design for Extended Pattern Control
The MK8126i features an innovative horn design that sets it apart from traditional compact loudspeakers. The large HF horn, loading a 1-inch exit/1.5-inch voice coil compression driver, extends pattern control well into the midrange. This design ensures that the horn’s 120° horizontal by 60° vertical coverage pattern overlaps perfectly with the woofer’s pattern in the critical crossover region, eliminating the beamwidth mismatches that cause off-axis voids in typical two-way systems.

Beamwidth Matching Crossover for Seamless Audio Transition
This loudspeaker’s advanced beamwidth matching crossover technology allows for seamless transitions between the high-frequency and low-frequency drivers. By selecting the crossover point where the HF horn and woofer patterns align perfectly, the MK8126i ensures consistent, high-quality audio coverage throughout the venue. This eliminates the common issue of audio voids in the crossover region, providing a smooth, full-range listening experience.

Sophisticated Internal Crossover for Enhanced Performance
The MK8126i is equipped with a complex internal passive crossover and filter network that goes beyond simple signal division. This sophisticated system integrates the subsystems with asymmetrical slopes, performing critical equalization functions that smooth power response and enhance overall audio clarity. This design allows the loudspeaker to be powered by a single amplifier channel, simplifying installation while ensuring optimal performance.

Flexible Installation with Rotatable Horn Design
The MK8126i offers flexibility in installation with its user-rotatable horn. This feature allows the enclosure to be mounted either vertically or horizontally, adapting to the specific needs of your space. Whether you need precise sound coverage in a theater, house of worship, or conference room, this loudspeaker can be configured to deliver the best possible audio performance.

Ideal for Professional Installations
The MK8126i is designed to meet the rigorous demands of professional installations. Its compact size makes it easy to integrate into any setup, while its advanced technology ensures that it delivers reliable, high-quality sound. This loudspeaker is perfect for any venue that requires consistent, powerful audio in a compact, versatile package.
