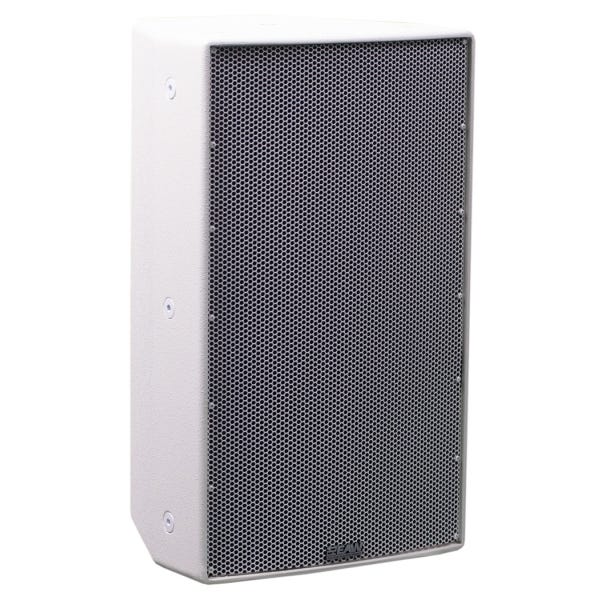

EAW MK8196i White 2-Way Passive Speaker

Compact Two-Way Loudspeaker with Exceptional Pattern Control
The EAW MK8196i is a passive 2-way full-range loudspeaker designed to outperform conventional compact two-way systems. It delivers high-fidelity sound, precise pattern control, and smooth off-axis response in a smaller footprint, making it a reliable choice for installed sound applications where space and sonic consistency are both critical. This loudspeaker integrates a powerful 8-inch woofer with a 1-inch exit, 1.5-inch voice coil compression driver on a 90° x 60° constant directivity horn. The MK8196i’s unique horn and crossover design allow it to maintain pattern integrity across the critical midrange frequencies—something often lacking in traditional compact loudspeakers.

Advanced Horn Design for Midrange Clarity
At the core of the MK8196i's performance is its oversized HF horn, which extends control well into the midrange. Most compact loudspeakers suffer from inconsistent directivity around the crossover point, but the MK8196i’s horn is specifically designed to maintain its 90° x 60° coverage lower in frequency. This overlap between the horn and woofer ensures the system retains uniform off-axis response and consistent tonality throughout the listening area. Whether mounted vertically or horizontally, the MK8196i offers predictable dispersion and high vocal intelligibility, making it well-suited for use in houses of worship, lecture halls, retail spaces, and restaurants.

Beamwidth-Matched Crossover for Consistent Coverage
Unlike many passive speakers that introduce coverage inconsistencies in the crossover region, the MK8196i features a beamwidth-optimized crossover. This proprietary crossover point is carefully selected so that the horn and woofer share matching coverage patterns at the transition, eliminating off-axis response gaps common in traditional 2-way designs. The internal passive network also uses asymmetrical crossover slopes and built-in EQ to further refine power response and deliver consistent performance across the entire listening area.

Rotatable Horn for Flexible Mounting Options
Installation flexibility is built into the MK8196i’s design. Its constant directivity horn is user-rotatable, allowing the enclosure to be positioned vertically or horizontally without compromising coverage. This lets integrators “rotate the enclosure around the horn,” maintaining pattern control based on the room orientation. Whether used for front fills, side fills, or distributed systems, the MK8196i can adapt to the acoustical and architectural requirements of any space.

Optimized for Single Amplifier Channel Operation
The MK8196i simplifies integration by offering passive operation via a single amplifier channel. Its internal crossover not only divides frequencies between the woofer and compression driver but also performs important EQ functions, enabling precise system voicing right out of the box. For designers and installers, this means fewer electronics and easier system deployment without sacrificing sound quality or control.
