Coaxial Loudspeaker with 110° Coverage, IP56 Weather Protection, 70V/100V Transformer, and Mounting Options for Wall, Ceiling, or Pole Installations
Features:
• 150W passive 2-way loudspeaker with 5.25-inch cone and 1-inch dome tweeter
• Weather-resistant IP56-rated enclosure for outdoor and indoor use
• Patented coaxial driver design for smooth dispersion and fidelity
• Nominal beamwidth of 110 degrees conical for wide, even coverage
• Max SPL of 121 dB (12 dB crest factor) and 115 dB (6 dB crest factor)
• Operating range from 80Hz to 20kHz with axial sensitivity of 87 dB
• High-output sound with calculated axial output of 109 dB average (121 dB peak)
• Built-in 70V/100V transformer for distributed audio system compatibility
• Mounting flexibility with threaded points for pole, mic stand, wall, or ceiling brackets
• Designed for optimal performance with UXA4401 amplifier and EAW DSP tools
• Dimensions: 9.3 x 6.5 x 5.6 inches, Net weight: 7.2 lbs
Compact Loudspeaker Designed for Versatile Installations

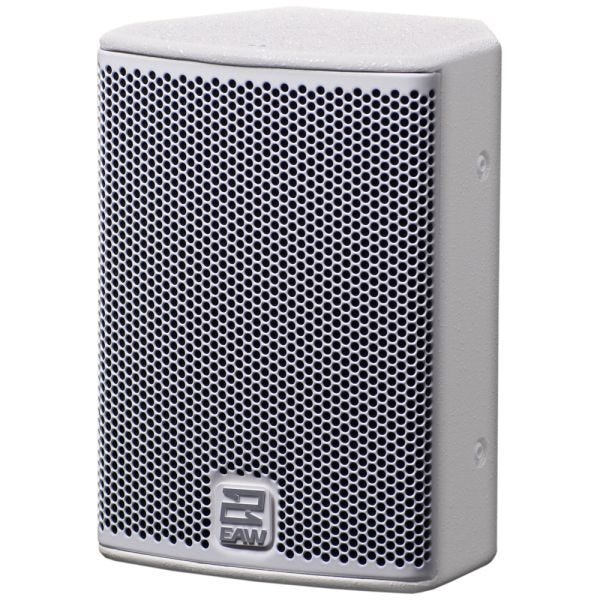

The EAW MKC50MTPL-WP WHITE is a compact passive 2-way loudspeaker engineered for high-quality audio in both indoor and outdoor environments. Delivering 150 watts of power through a 5.25-inch low-frequency cone driver and a 1-inch dome tweeter, this speaker provides clear, balanced sound across a broad frequency range. With its small footprint and white finish, the MKC50MTPL-WP WHITE fits seamlessly into visually sensitive spaces, making it ideal for background music, paging, classrooms, and small venue installations.
Reliable Performance in Challenging Environments
Built to withstand harsh conditions, the MKC50MTPL-WP WHITE features an IP56-rated enclosure that protects it from dust, moisture, and water exposure. Whether used in covered patios, outdoor retail spaces, or interior applications where durability is critical, this loudspeaker maintains consistent performance and long-term reliability. The unit also includes a 70V/100V transformer for integration into large-scale distributed audio systems, making it a go-to solution for commercial and institutional installs.
Wide Dispersion for Full-Area Coverage
Thanks to its coaxial driver design and a nominal 110-degree conical beamwidth, the MKC50MTPL-WP WHITE delivers even sound distribution across the coverage area. This ensures consistent audio performance whether mounted in the ceiling, on a wall, or on a pole. With a maximum SPL of 121 dB (12 dB crest factor) and an operating range from 80Hz to 20kHz, this speaker provides full-range sound for both speech and music playback with minimal distortion.
Flexible Mounting Options for Simple Installation
The MKC50MTPL-WP WHITE supports a variety of mounting configurations, including horizontal and vertical wall mounting via pan and tilt brackets, ceiling suspension, and even microphone stand mounting using its M6 and M5 threaded points. This versatility makes it easy to adapt the speaker to a range of architectural and functional needs without compromising aesthetics or sound coverage. Its compact cabinet design also allows for installation in tight or visually constrained spaces.
Optimized When Paired with EAW Amplification and DSP
This loudspeaker is tuned for use with the EAW UXA4401 amplifier, which provides advanced signal processing via EAW’s Focusing and DynO DSP technology. These tools optimize phase response, dynamic range, and overall clarity, ensuring professional-grade performance even in challenging acoustic environments. The combination of compact size, flexible mounting, and DSP optimization makes the MKC50MTPL-WP WHITE a smart solution for professional integrators seeking reliable audio in a discreet package.
MPN | MKC50MTPL-WP WHITE (2 per box) |
---|---|
Color | White |
Brand | EAW |
Product Condition | New |
Availability | Out of Stock |
