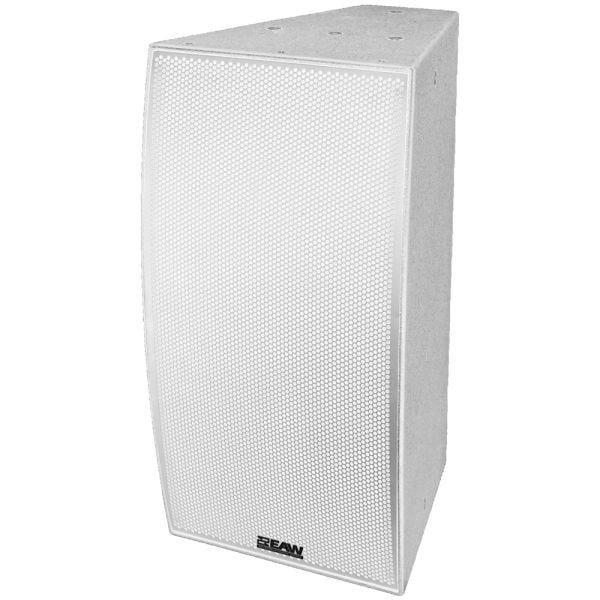

EAW MKD1026-WP

Professional Sound Reinforcement in a Compact Two-way Design
The EAW MKD1026-WP WHITE is a 1000W passive 2-way installation loudspeaker built to deliver powerful output, even sound distribution, and high-fidelity audio reproduction across a broad frequency range. Designed for permanent installation in large venues, clubs, stadiums, and outdoor settings, this speaker offers broadband pattern control and flexible mounting options to accommodate demanding architectural and acoustic environments. Its white finish and gently curved front panel allow it to blend seamlessly into aesthetically sensitive installations without compromising performance.

Wide Coverage with Precise Pattern Control
Equipped with dual 10-inch cone woofers and a 1.4-inch exit Neodymium compression driver, the MKD1026-WP WHITE is optimized for full-range clarity and high output. The speaker delivers a 120° horizontal by 60° vertical coverage pattern, ensuring broad, even dispersion for installations requiring wide-area audio reinforcement. The rotatable large-format horn design paired with beamwidth-matched crossover technology enables smoother transitions between drivers and extends usable bandwidth for both speech and music applications.

QX-series Performance In a Weather-Protected Package
Leveraging design elements from EAW’s acclaimed QX series, the MKD1026-WP WHITE integrates advanced driver spacing and crossover alignment for extended low-frequency performance and improved intelligibility. With a peak SPL of 141 dB and flat SPL of 135 dB, the speaker handles high-output requirements with ease, making it suitable for live performance venues and immersive sound environments. The operating range spans 57Hz to 20kHz, offering complete sonic coverage for vocals, instrumentation, and playback content.

Flexible Installation Options for Indoor and Outdoor Use
Designed for both horizontal and vertical mounting, the MKD1026-WP WHITE features a durable Baltic birch cabinet and 12 M10 rigging points, making it adaptable to various configurations. The weather-protected (IP56-rated) construction ensures reliable performance in outdoor environments or under exposed architectural conditions. Custom color options and a refined enclosure shape make the MKD1026-WP WHITE an ideal choice for venues where visual integration is just as important as acoustic quality.

Engineered for Real-World Audio System Integration
The MKD1026-WP WHITE supports both passive and bi-amp operation, giving system designers flexibility to meet specific power distribution and processing requirements. Its calculated axial output of 120 dB average (132 dB peak) and 93 dB sensitivity ensure efficient use of power without compromising clarity or dynamic range. Whether used in foreground reinforcement or zoned audio environments, the MKD1026-WP WHITE is built to meet the needs of professional integrators and live sound installers alike.
