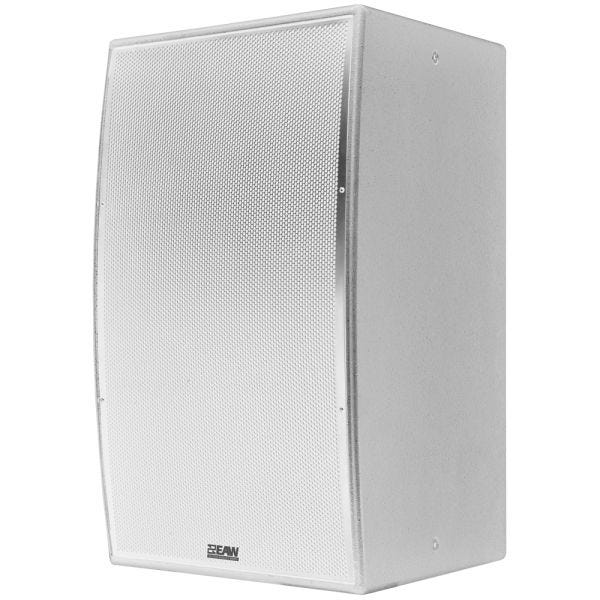

EAW MKD1296 2-Way Installation Loudspeaker (White)

High-power loudspeaker built for professional installations
The EAW MKD1296 WHITE is a 1200W passive 2-way installation loudspeaker designed to deliver full-range, high-output sound in both large and acoustically complex environments. With dual 12-inch low-frequency cone transducers and two high-frequency compression drivers, this system provides powerful low end, accurate midrange, and smooth highs. It’s ideal for use in stadiums, arenas, music venues, and performance halls where high SPL and uniform coverage are required. Its white finish allows the speaker to blend into architecturally sensitive environments without compromising performance.

QX-inspired design enhances bandwidth and coverage
Drawing from EAW’s flagship QX series, the MKD1296 incorporates beamwidth-matched crossover technology, enabling its low-frequency drivers to operate an octave lower than traditional designs. This improves bass performance while ensuring seamless integration between the low, mid, and high-frequency elements. A large-format rotatable horn, centered between the two 12-inch LF drivers, offers consistent 90° x 60° coverage. This setup ensures even horizontal and vertical dispersion across wide listening zones, improving speech intelligibility and musical detail.

High output and full-range clarity for critical applications
With an operating range of 47 Hz to 20 kHz and a calculated axial sensitivity of 93 dB, the MKD1296 WHITE delivers detailed sound reproduction across the full frequency spectrum. It achieves a maximum SPL of 145 dB and a flat SPL of 139 dB, making it suitable for high-energy environments where clarity must be preserved at high volumes. Whether used for live music, speech reinforcement, or multimedia playback, the MKD1296 WHITE ensures a consistent and impactful listening experience throughout the venue.

Flexible mounting and rugged construction for install environments
The enclosure is made from Baltic birch plywood, offering durability with minimal resonant coloration. Twelve M10 threaded mounting points allow for a variety of rigging configurations using U-brackets or eyebolts, enabling horizontal or vertical orientation. This speaker also supports both passive and bi-amp operation, providing integrators with more control over system tuning. The curved front panel and white painted finish make the MKD1296 WHITE visually discreet for use in theaters, houses of worship, and corporate venues.

Weather-resistant design for indoor and outdoor use
With an available IP56-rated weather protection package, the MKD1296 WHITE is built to perform in demanding outdoor conditions. From open-air stadiums to covered amphitheaters, it offers the reliability needed for year-round operation. The terminal block input connector ensures secure wiring in permanent installations, reducing maintenance and connection issues over time.
