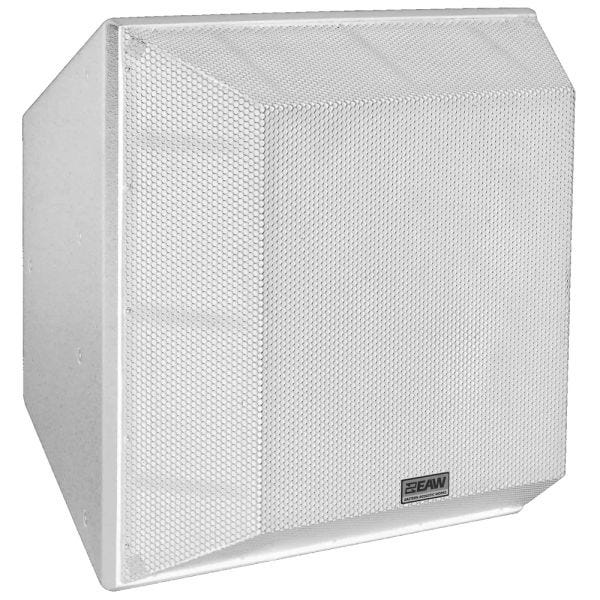

EAW QX394-WP 2-Way Installation Loudspeaker (White)

Compact design with high-output power for permanent installations
The EAW QX394-WP WHITE is a compact, high-performance passive 2-way loudspeaker engineered for permanent installations that demand excellent output, controlled directivity, and sound clarity. Designed to match the power and broadband pattern control of the QX500 series in a smaller format, this loudspeaker is well-suited for venues requiring consistent sound coverage, whether in large open spaces or acoustically reflective environments. Its weather-protected build makes it a durable solution for both indoor and outdoor applications.

Ideal for arenas, clubs, and reverberant spaces
Thanks to its broadband pattern control and high output capability, the QX394-WP WHITE excels in a range of challenging acoustic settings. Whether it’s installed in a medium-throw zone of an arena, a live music club, or a reverberant cathedral, this speaker delivers clean and articulate audio across the entire listening area. It is particularly effective in public spaces where reflections and echo would typically compromise speech intelligibility or musical fidelity.

Wide coverage with optimized phase alignment
This speaker features a 90° x 45° constant directivity horn driven by a 4-inch voice coil high-frequency compression driver. The horn ensures consistent coverage across both horizontal and vertical planes. Four 10-inch low-frequency drivers are arranged in vertical and horizontal pairs around the HF driver to maintain phase coherence and extend control well into the low-frequency spectrum. This design makes the speaker’s response appear to originate from a single point, improving clarity and coherence across the frequency range.

Flexible wiring and processing options
The QX394-WP WHITE supports both single-amp and bi-amp operating modes, offering integration flexibility for a variety of system designs. Independent connections for each woofer pair allow users to configure parallel or series wiring as needed. External DSP, combined with EAW Focusing technology, ensures optimal tuning for every environment, from live performance venues to public address installations.

Rugged construction with weather protection
Built from exterior-grade Baltic birch plywood and finished with a wear-resistant white paint, the QX394-WP WHITE is engineered for real-world durability. A powder-coated steel grille protects internal components while ensuring sonic transparency. Its IP64-rated construction ensures resistance against dust and water, making it suitable for semi-outdoor or weather-prone environments. With a manageable size and mounting flexibility, it’s easy to install and maintain in demanding applications.

High-performance sound in a smaller footprint
Delivering a frequency response from 75 Hz to 20 kHz, the QX394-WP WHITE balances extended low-end performance with crisp high-frequency output. With an average axial sensitivity of 106 dB and a peak output of 142 dB SPL, it is more than capable of handling high-energy content while maintaining clear audio detail. The speaker offers impressive performance for its footprint, making it a powerful solution when space is limited but uncompromising sound is required.
