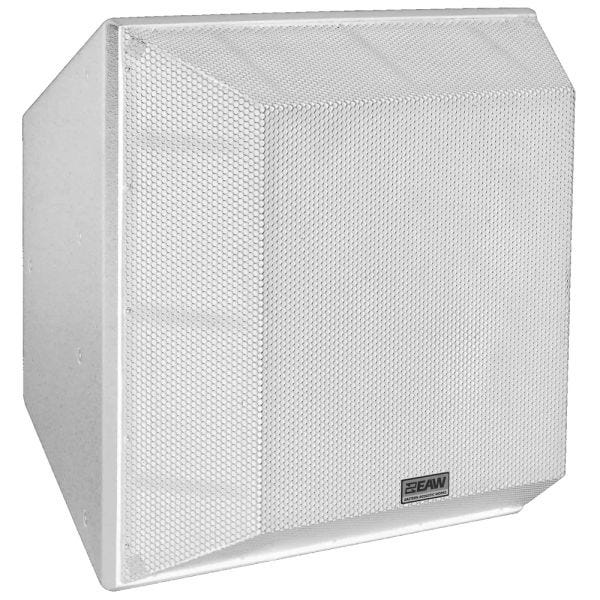

EAW QX566i-WP 3-Way IP64-Rated Installation Loudspeaker

Built for Long-Throw and High-Energy Sound Installations
The EAW QX566i-WP WHITE is a 3-way passive loudspeaker designed for permanent installation in demanding environments. It delivers consistent broadband pattern control, high-output performance, and excellent fidelity, making it a solid choice for venues requiring precision and power. Ideal for arenas, stadiums, and large houses of worship, this speaker is engineered to meet the sonic challenges of reverberant or acoustically complex spaces.

Rugged Weather-Proof Design for Indoor and Outdoor Use
Rated IP64 for dust and water resistance, the QX566i-WP WHITE is equipped for harsh conditions. Whether installed in an outdoor stadium or exposed venue, its weather-protected enclosure keeps performance reliable and uninterrupted. Its durable Baltic Birch cabinet is finished in white with a tough, wear-resistant coating, blending visually into architectural environments.

Symmetrical Driver Alignment for Cohesive Output
The speaker’s four 12-inch low-frequency drivers are phase-aligned and symmetrically placed around the coaxial mid/high compression driver. This design ensures the full frequency spectrum appears to radiate from a single point, improving phase coherence and coverage consistency. It avoids frequency smearing often found in systems with offset components, resulting in a unified listening experience throughout the coverage area.

Constant Directivity Horn Enhances Coverage Control
With a 60° x 60° horn, the QX566i-WP WHITE provides tightly controlled dispersion that ensures intelligibility even in large, reverberant spaces. Its horn design draws from EAW’s legacy of precision waveguide engineering, allowing system designers to predict coverage and mitigate acoustic reflections.

High SPL Capability for Demanding Environments
This bi-amplified system is capable of extreme output without sacrificing fidelity. It supports up to 146 dB maximum SPL with calculated axial output limits of 136 dB (LF) and 134 dB (MF/HF), making it ideal for large-scale installations that require powerful projection and dynamic response.

Optimized for Integration with Professional Systems
The QX566i-WP WHITE works seamlessly with EAW UX series processors and amplifiers to deliver consistent, accurate voicing across entire system arrays. Its consistent voicing and rugged build make it an excellent choice for scalable system designs in fixed installations.
