Elation Lighting DA2410V 24-Port 0-10V Gateway for Lighting Control Systems

Versatile 24-Port 0-10V Gateway for Lighting Control Systems

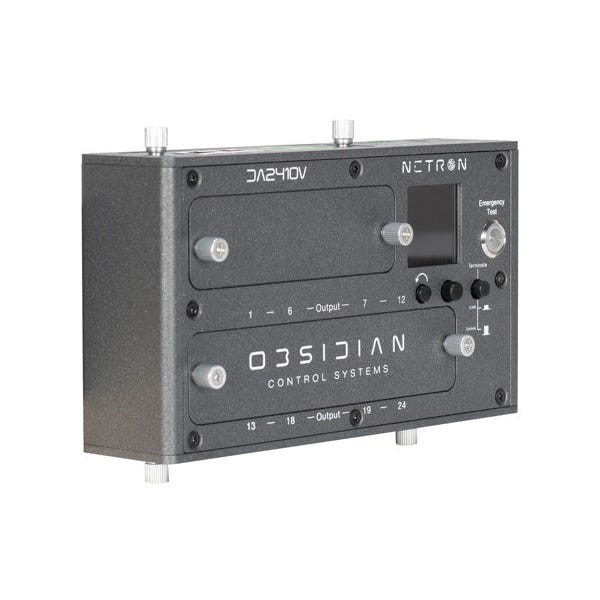

The Netron DA2410V is a compact and adaptable Ethernet or DMX gateway designed for DIN rail or wall mounting. With 24 analog 0-10V outputs, it serves as a reliable interface for integrating analog dimming devices into modern lighting control systems. This unit supports multiple protocols, including DMX, Art-Net, and sACN, ensuring seamless communication across various platforms.

Flexible Connectivity Options for Diverse Installations
Equipped with innovative connector configurations, the DA2410V allows for screw-terminal or IDC (Insulation Displacement Connector) setups. Exchangeable plates enable these connections to be installed on the top, bottom, or front of the device, catering to different installer preferences and space constraints. This flexibility simplifies the integration process in both new installations and retrofits.

User-Friendly Configuration with OLED Display
The device features a full-color 1.3" OLED display paired with an intuitive rotary encoder, facilitating straightforward configuration and monitoring. Users can easily navigate through settings, select input sources, and adjust output parameters directly from the interface, streamlining the setup process without the need for additional software.

Robust Emergency Cue System for Safety Compliance
The DA2410V is UL924 compliant, incorporating a dedicated emergency cue system. It includes a prominent test button with integrated LED feedback and supports wet or dry contact closures. Users can program custom cues, set unique levels per channel, or configure all analog outputs to 100%, ensuring compliance with safety standards and providing reliable operation during emergencies.

Remote Management and Power Options for Enhanced Control
Beyond local configuration, the DA2410V offers remote management via an internal web interface, allowing for convenient adjustments and monitoring over a network. It supports a wide DC input range from 12 to 48V and is compatible with Power over Ethernet (PoE), offering versatility in power sourcing to suit various installation scenarios.

Durable Construction for Demanding Environments
Housed in a powder-coated aluminum enclosure, the DA2410V is built to withstand the rigors of professional environments. Its compact dimensions (116mm x 143mm x 52mm) and lightweight design (0.8 kg) make it suitable for installations where space is at a premium, without compromising on durability or performance.
