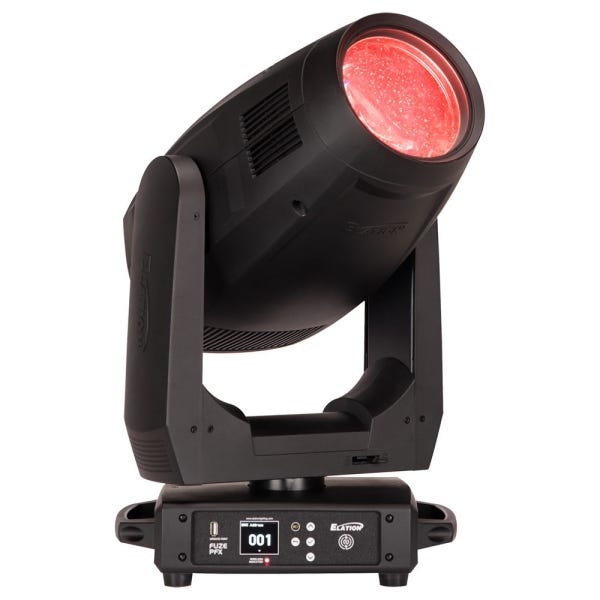

Elation Lighting FUZE PFX 400W 6600K LED Moving Head Profile

Powerful LED Profile Fixture for Versatile Lighting Applications
The FUZE PFX is a compact, high-output 400W LED profile fixture designed to deliver bright, crisp light and a wide range of creative effects for professional stage and event lighting. With a 6,600K white LED engine producing over 15,000 lumens, this fixture is ideal for everything from sharp aerial effects to smooth stage washes. Its advanced optics and feature-packed design make it a flexible tool for theaters, concerts, houses of worship, and broadcast environments.

High-Performance LED Engine with Extended Life
At the core of the FUZE PFX is a 400W LED engine that produces a bright white beam at 6,600K, ensuring clean, consistent illumination. With an average LED life of 20,000 hours, it delivers dependable performance over time while minimizing maintenance needs. Whether you're lighting detailed set pieces or filling a space with dynamic movement, the fixture delivers power and reliability you can count on.

Advanced Color Control and Gobo Projection Options
The fixture includes a CMY color mixing system and an 8-position color wheel for creating a wide range of vibrant colors. A linear CTO filter allows for subtle color temperature adjustments, while two high CRI filters (80 and 90) support applications requiring precise color rendering. With 7 rotating interchangeable gobos and 11 fixed metal gobos, the FUZE PFX provides stunning pattern projection for immersive lighting designs.

Precise Framing and Zoom Capabilities
Equipped with four full blackout framing blades and a +/- 60° indexing system, the FUZE PFX gives lighting designers precise control over the shape and direction of the beam. The motorized zoom range of 3° to 53° allows the fixture to switch effortlessly between tight beam effects and broad coverage washes, making it suitable for detailed highlighting as well as large area illumination.

Layered Effects with Frost and Prism Options
The dual variable frost filters (light and wash) allow for smooth diffusion of light, transitioning from sharp patterns to soft washes in an instant. Two independent rotating prisms—one linear and one round—enable complex multi-layered effects, while the motorized iris and high-speed shutter add further dimension and dynamism to your lighting cues.

Comprehensive Control and Seamless Integration
Control is made easy with support for DMX, RDM, Art-Net, sACN, and E-FLY wireless protocols. The fixture is equipped with locking 5-pin XLR connectors, locking RJ45 Ethernet ports, and an IP65-rated power connector for dependable connectivity. A USB port is included for firmware updates, and the onboard touch panel with a full-color reversible LCD menu makes configuration fast and intuitive.

Compact, Durable Design for Professional Installations
Despite its powerful output, the FUZE PFX maintains a compact footprint, measuring just over 25 inches in height and weighing 50 pounds. Its rugged build is optimized for both touring and fixed installations, and with an IP20 rating, it's well-suited for indoor environments. The fixture operates on 100-240V power and consumes a maximum of 600W, offering performance without excessive energy use.
