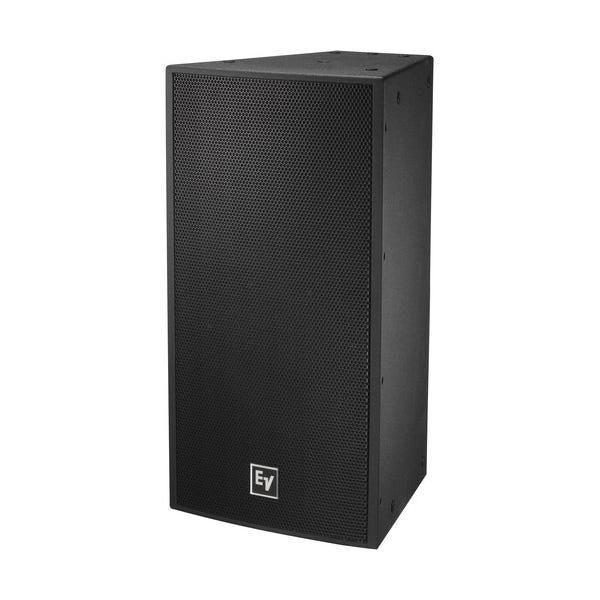

Electro-Voice EVF-1122D/126-BLK 12" 2-Way Full-Range Indoor Loudspeaker

Premium Full-Range Loudspeaker for Exceptional Sound Quality
The Electro-Voice EVF-1122D/126-BLK is a high-performance 12-inch two-way full-range loudspeaker system, designed to deliver crystal-clear audio for indoor sound reinforcement applications. Engineered with precision, this system combines a powerful compression driver and low-frequency transducer to ensure high output, low distortion, and excellent vocal intelligibility. Whether for houses of worship, theaters, or live performance venues, this speaker is built to provide consistent and reliable audio performance.

High-Output Compression Driver for Clear and Powerful Sound
At the heart of the EVF-1122D/126-BLK is the DH7N 3-inch titanium compression driver, which provides smooth, natural sound reproduction with impressive clarity. Coupled with a constant directivity 120° x 60° waveguide, the high frequencies are dispersed evenly across the listening area, ensuring consistent coverage in both horizontal and vertical orientations. This design makes it ideal for applications requiring even sound distribution across large spaces.

Precision-Engineered Woofer for Deep, Accurate Low-End
The loudspeaker incorporates the DVX3121A 12-inch low-frequency transducer, which is designed using advanced FEA optimization techniques. This ensures superior performance with minimal distortion, excellent efficiency, and high sound pressure levels (SPL). With its fully symmetric drive motor and optimized suspension, the woofer delivers powerful, accurate bass that complements the clear highs, creating a full and balanced sound profile.

Advanced Crossover Network for Smooth and Reliable Performance
Equipped with a fourth-order crossover network, the EVF-1122D/126-BLK delivers seamless transitions between the high and low frequencies. The network is designed with steep 24 dB-per-octave slopes and equalization to provide smooth response through the vocal range while maintaining linear off-axis sound quality. A built-in protection circuit ensures long-term reliability by safeguarding the high-frequency driver against excessive input levels.

Durable Enclosure for Rigorous Installations
Built to endure the demands of professional audio installations, the EVF-1122D/126-BLK features a rugged 13-ply birch enclosure finished with EVCoat for enhanced durability. This construction not only protects the speaker components but also allows for secure vertical or horizontal mounting in clusters with other loudspeakers from the EVF or EVH series. Its sleek black finish ensures it blends seamlessly into any venue environment.

Flexible Connectivity and Mounting Options
The input panel of the EVF-1122D/126-BLK includes dual 4-pin Phoenix connectors, allowing easy installation with up to 10 AWG cables. An externally accessible jumper lets you select between passive and active operation for maximum flexibility in sound system configurations. Additionally, the enclosure features 22 M10 threaded suspension points for secure and versatile mounting options, making it suitable for both permanent and temporary installations.

Optimized Coverage Pattern for Even Audio Distribution
With its 120° x 60° rotatable waveguide, this loudspeaker offers flexible coverage that can be adjusted to match the orientation of your installation. This ensures even sound distribution regardless of the mounting position, allowing the system to adapt seamlessly to the acoustics of any venue.
