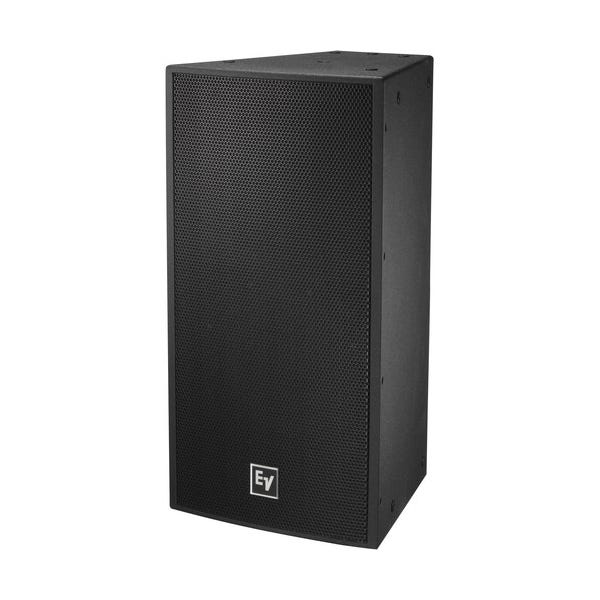

Electro-Voice EVF-1122D/126-PIB 12" 2-Way Full-Range Semi-Outdoor Loudspeaker System

High-Performance Weatherized Loudspeaker for Outdoor Sound Coverage
The Electro-Voice EVF-1122D/126-PIB is a two-way 12-inch full-range weatherized loudspeaker system designed for clear, powerful sound reinforcement in outdoor and demanding environments. With its 120° x 60° rotatable constant directivity waveguide, this loudspeaker ensures uniform sound coverage in near-field applications, making it ideal for outdoor arenas, theme parks, and other open spaces. Engineered for reliability, it delivers consistent audio clarity with robust construction to withstand harsh conditions.

Rotatable Waveguide for Flexible Sound Coverage
The EVF-1122D/126-PIB features a 120° x 60° rotatable waveguide, giving you the flexibility to adapt speaker orientation for optimal sound dispersion. Whether mounted horizontally or vertically, this constant directivity waveguide ensures uniform sound coverage, minimizing dead zones and providing balanced audio across wide areas. It’s the perfect solution for near-field applications requiring consistent and wide throw patterns.

Superior High-Frequency Performance with DH7N Compression Driver
At the heart of the EVF-1122D/126-PIB is the DH7N 3-inch titanium/neodymium high-frequency compression driver. This premium driver delivers crisp and accurate high frequencies with exceptional efficiency and reliability. Designed to handle high SPLs, it ensures your system produces articulate vocals and detailed music even at elevated volume levels.

Advanced Low-Frequency Design for Powerful Output
The 12-inch low-frequency transducer, built using state-of-the-art technology, provides deep and distortion-free bass. With 97 dB sensitivity and a maximum SPL of 131 dB, the EVF-1122D/126-PIB delivers powerful sound output without compromising clarity. Its efficient design ensures smooth low-end response, perfectly complementing the high frequencies for a full-range audio experience.

Durable Weatherized Enclosure for Harsh Environments
Constructed with a 13-ply birch enclosure and finished in EVCoat, the EVF-1122D/126-PIB is built to handle extreme outdoor conditions. The weatherized finish protects the speaker from moisture, dust, and temperature fluctuations, ensuring durability and long-lasting performance. The trapezoidal design makes it easy to integrate into clusters or arrays for larger installations.

Reliable Passive Crossover with High-Frequency Protection
The EVF-1122D/126-PIB is equipped with a 4th-order passive crossover network, offering seamless transitions between low and high frequencies. Built-in high-frequency protection ensures the compression driver remains safe under heavy use, providing long-term reliability for fixed-installation applications.

Multiple Mounting Options for Installation Flexibility
Featuring a trapezoidal design and multiple suspension points, the EVF-1122D/126-PIB can be mounted in a variety of configurations. Whether flown, clustered, or surface-mounted, the loudspeaker provides exceptional flexibility for audio professionals. It is a versatile and efficient solution for achieving wide-area coverage in outdoor installations.
